Connector End View - X157 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1525769-00-A

Connector DELPHI 33164011

Color BK

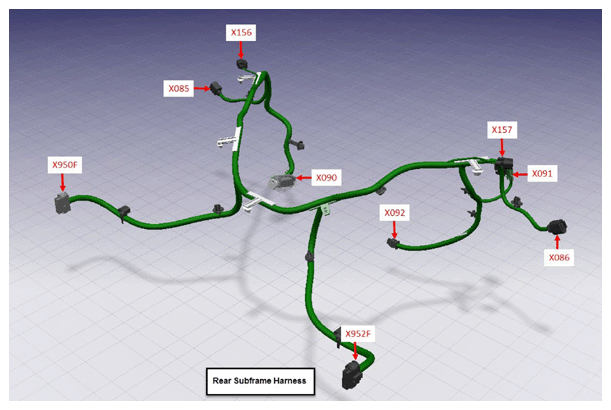

Connector Location:

Fig 1: Connector Component Location - X157 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

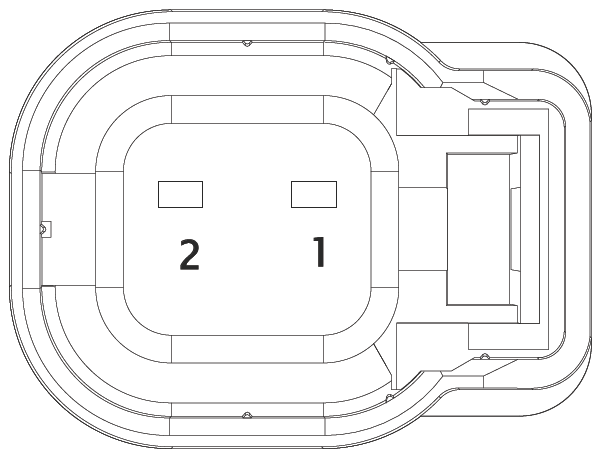

Connector Pinout:

Fig 2: Connector End View - X157 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-4102-02	1.5x0.8FS	WH	0.35	YAZAKI	7158-3030-50	X952F	4
2	YAZAKI	7116-4102-02	1.5x0.8FS	VT	0.35	YAZAKI	7158-3030-50	X952F	5
