Connector End View - X155A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1516302-00-A
Connector MOLEX 33482-4801
Color BK

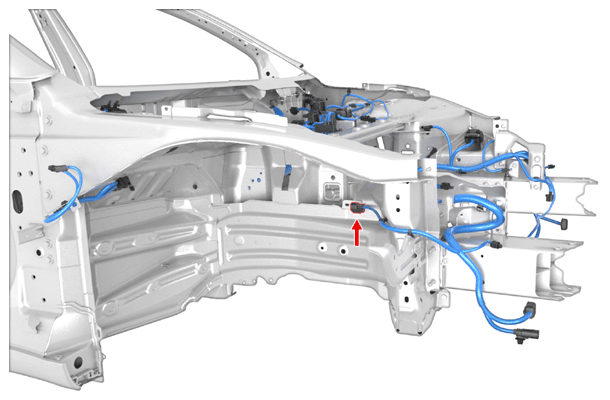

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | BU | 0.35 | TESLA | MAT-120-240 | X057 | 21 |
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.35 | TESLA | MAT-120-240 | X057 | 20 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.35 | TESLA | MAT-120-240 | X154A | 2 |
| 4 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.35 | TESLA | MAT-120-240 | X154A | 1 |
| 5 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.35 | TESLA | MAT-120-240 | X057 | 5 |
| 6 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.35 | TESLA | MAT-120-240 | X057 | 4 |
| 7 | MOLEX | 33000-0004 | 1.5x0.8M | BU | 0.35 | TESLA | MAT-120-240 | X151 | 21 |
| 8 | MOLEX | 33000-0004 | 1.5x0.8M | GY | 0.35 | TESLA | MAT-120-240 | X151 | 26 |
