Connector End View - X092 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1496688-00-A
Connector DELPHI 35126369
Color BK

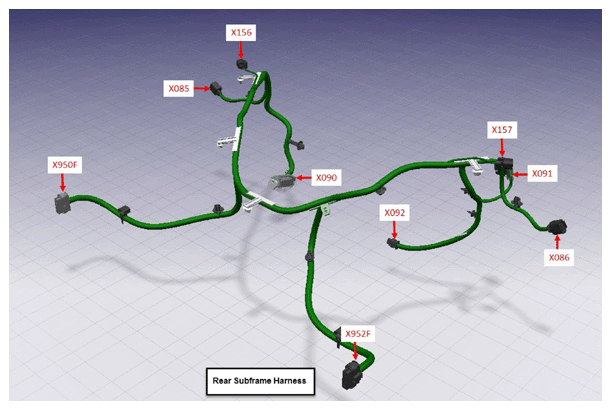

Connector Location:

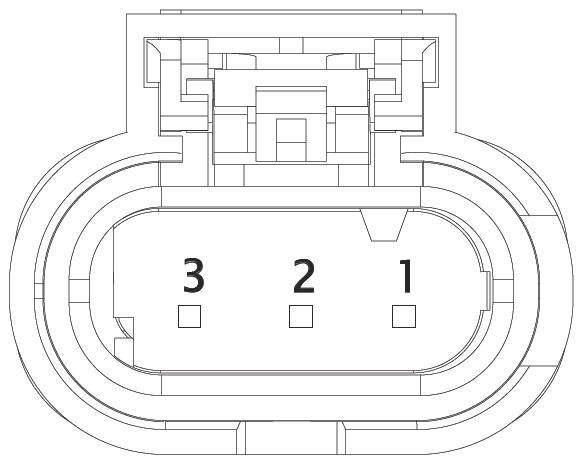

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-3 | 1.2x0.6FS | RD | 1.00 | AMP | 967067-1 | X952F | 10 |
| 2 | AMP | 7-1452665-3 | 1.2x0.6FS | GN | 0.35 | AMP | 967067-2 | X090 | 10 |
| 3 | AMP | 7-1452671-3 | 1.2x0.6FS | BK | 1.00 | AMP | 967067-1 | X952F | 8 |
