Connector End View - X090 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1077101-00-A

Connector SUMITOMO 6189-6987

Color GY

Connector Location:

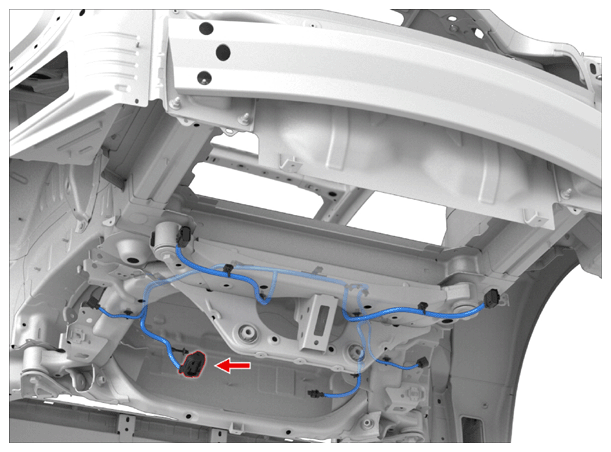

Fig 1: Connector Component Location - X090 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610496

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X090 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610497

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X952F	7
3	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X952F	15
4	unused
5	unused
6	unused
7	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X091	9
8	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X091	5
9	unused
10	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X092	2
11	unused
12	SUMITOMO	8100-3456	0.64x0.64FS	BU/WH	0.35	SUMITOMO	7165-1312	X952F	6
13	SUMITOMO	8240-0288	0.64x0.64FS	BK	0.50	SUMITOMO	7165-1198	X952F	14
14	unused
15	unused
16	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X091	8
17	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X091	4
18	unused
19	unused
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X091	3
27	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X091	10
28	unused
29	unused
30	unused
