Connector End View - X080 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1015192-00-A
Connector FEP 42122600
Color BK

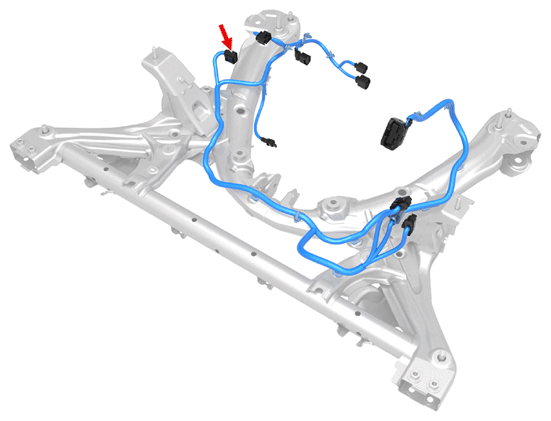

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 969005-2 | 1.6x0.6FS | RD | 0.35 | X912M | 5 | ||
| 2 | AMP | 969005-2 | 1.6x0.6FS | VT | 0.35 | X912M | 4 | ||
| 3 | AMP | 969005-2 | 1.6x0.6FS | GN | 0.35 | X912M | 7 | ||
| 4 | AMP | 969005-2 | 1.6x0.6FS | YE | 0.35 | X912M | 6 | ||
| 5 | AMP | 969005-2 | 1.6x0.6FS | WH | 0.35 | X912M | 10 | ||
| 6 | AMP | 969005-2 | 1.6x0.6FS | VT | 0.35 | X912M | 9 | ||
| 7 | AMP | 969005-2 | 1.6x0.6FS | BN | 0.35 | X912M | 13 | ||
| 8 | AMP | 969005-2 | 1.6x0.6FS | BU | 0.35 | X912M | 8 | ||
| 9 | AMP | 969005-2 | 1.6x0.6FS | GY | 0.35 | X912M | 12 | ||
| 10 | AMP | 969005-2 | 1.6x0.6FS | RD | 0.35 | X912M | 11 |
