Connector End View - X052 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1090045-00-A

Connector  SUMITOMO 6098-8119

Color  GY

Connector Location:

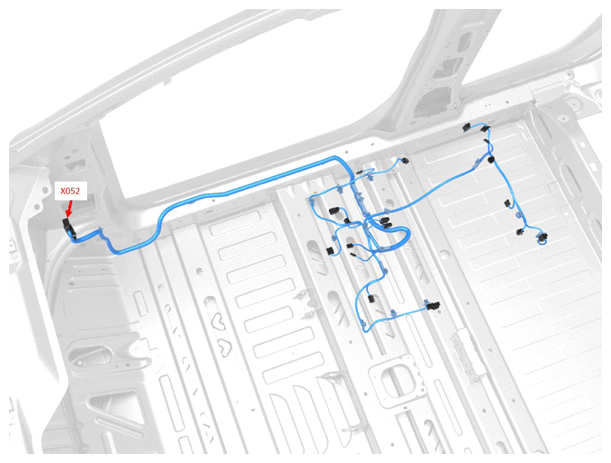

Fig 1: Connector Component Location - X052 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610471Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X052 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610472Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F VT/TN 0.35     X245 1
2 SUMITOMO 8100-3625 0.64x0.64F GY/GN 0.35     X245 2
3 SUMITOMO 8100-3625 0.64x0.64F BN 0.50
4 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X614R 4
5 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X613R 2
6 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X618R 2
7 SUMITOMO 8100-3625 0.64x0.64F GN/GY 0.35     X216 1
8 SUMITOMO 8100-3625 0.64x0.64F BU/YE 0.35     X216 2
9 SUMITOMO 8240-0215 1.5x0.64F RD 0.35     X625R 1
10 SUMITOMO 8240-0215 1.5x0.64F RD/WH 0.35     X626R 1
11 SUMITOMO 8240-0215 1.5x0.64F GY/WH 0.35     X626R 2
12 SUMITOMO 8240-0215 1.5x0.64F YE 0.35     X640 1
13 SUMITOMO 8240-0215 1.5x0.64F BN 0.50     X616R 1
14 SUMITOMO 8240-0215 1.5x0.64F YE/BU 0.35     X238 1
15 SUMITOMO 8240-0215 1.5x0.64F VT/BU 0.35     X238 2
16 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X625R 2
17 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X617R 3
18 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X653 2
19 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X653 3
20 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X653 1
21 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X619R 6
22 unused
23 unused
24 unused
25 unused
26 SUMITOMO 8240-0214 1.5x0.64F GY 2.00     X614R 5
27 SUMITOMO 8240-0214 1.5x0.64F BU 2.00     X614R 1
28 unused
29 SUMITOMO 8240-0213 1.5x0.64F BK 1.00     X613R 3
30 SUMITOMO 8240-0213 1.5x0.64F GN 1.00     X613R 1
31 unused
32 SUMITOMO 8240-0215 1.5x0.64F BN 0.35     X624 2
33 SUMITOMO 8240-0215 1.5x0.64F WH 0.35     X624 1
34 SUMITOMO 8240-0215 1.5x0.64F RD 0.35     X619R 1
35 SUMITOMO 8240-0215 1.5x0.64F BN/WH 0.50     X617R 1
36 SUMITOMO 8240-0215 1.5x0.64F TN 0.35     X621R 4
37 unused
38 unused
39 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X661 2
40 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X661 1
41 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X661 3
42 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X622R 1
43 unused
44 unused
45 unused
46 SUMITOMO 8240-0213 1.5x0.64F VT 0.75     X621R 3
47 SUMITOMO 8240-0213 1.5x0.64F YE 0.75     X621R 1
48 unused
49 SUMITOMO 8240-0213 1.5x0.64F GN 0.75     X618R 3
50 SUMITOMO 8240-0213 1.5x0.64F WH 0.75     X618R 1
51 SUMITOMO 8240-0215 1.5x0.64F YE 0.50     X617R 2
52 SUMITOMO 8240-0215 1.5x0.64F RD 0.50     X616R 2
