Connector End View - X035 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1506906-01-A

Connector  SUMITOMO 6098-8975

Color  GY

Connector Location:

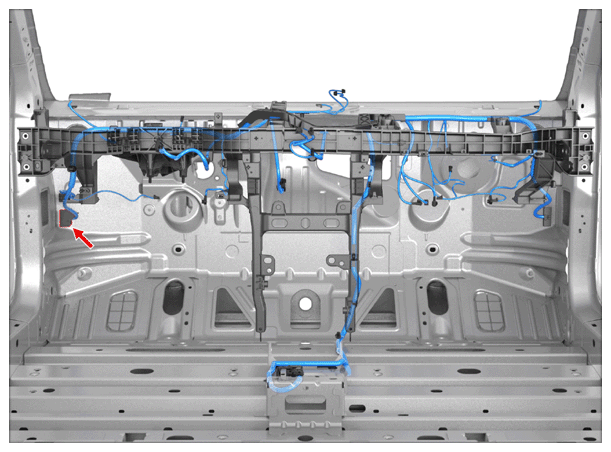

Fig 1: Connector Component Location - X035 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610453Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X035 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610454Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8240-0215 1.5x0.64F VT 0.35     X200 8
2 SUMITOMO 8240-0215 1.5x0.64F BK 0.35     X200 7
3 unused
4 SUMITOMO 8240-0215 1.5x0.64F BU 0.35     X200 46
5 SUMITOMO 8240-0213 1.5x0.64F VT 0.75     X180 7
6 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X200 52
7 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X200 45
8 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 43
9 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X200 47
10 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X180 3
11 SUMITOMO 8100-3625 0.64x0.64F BN/WH 0.35     X180 2
12 unused
13 unused
14 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X284 1
15 SUMITOMO 8240-0215 1.5x0.64F GN 0.50     X182 2
16 SUMITOMO 8240-0215 1.5x0.64F WH 0.35     X200 4
17 SUMITOMO 8240-0215 1.5x0.64F VT 0.35     X200 31
18 SUMITOMO 8240-0215 1.5x0.64F GY 0.35     X200 32
19 unused
20 SUMITOMO 8240-0214 1.5x0.64F BN 1.50
21 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 51
22 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X182 12
23 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X200 44
24 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X182 8
25 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X200 48
26 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 49
27 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X200 50
28 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X990M 7
29 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X990M 14
30 unused
31 SUMITOMO 8240-0215 1.5x0.64F YE 0.50     X182 1
32 SUMITOMO 8240-0215 1.5x0.64F BU 0.35     X200 3
33 unused
34 SUMITOMO 8240-0215 1.5x0.64F BU 0.35     X990M 13
35 SUMITOMO 8240-0215 1.5x0.64F WH 0.50     X182 6
36 SUMITOMO 8240-0215 1.5x0.64F RD 0.50     X182 5
37 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X283 3
38 unused
39 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X182 7
40 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X182 11
41 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X180 14
42 unused
43 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X280 1
44 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X180 1
45 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X283 1
