Connector End View - X030B (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1506907-01-A

Connector  SUMITOMO 6098-8947

Color  WH

Connector Location:

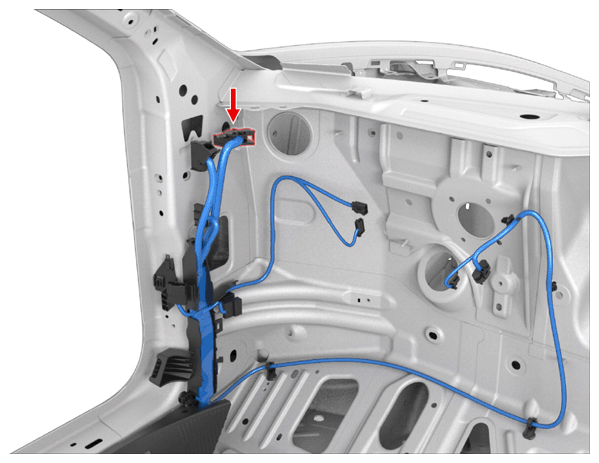

Fig 1: Connector Component Location - X030B (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X030B (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
