Connector End View - X014 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1660491-00-E
Connector KSE K21F00641
Color GY

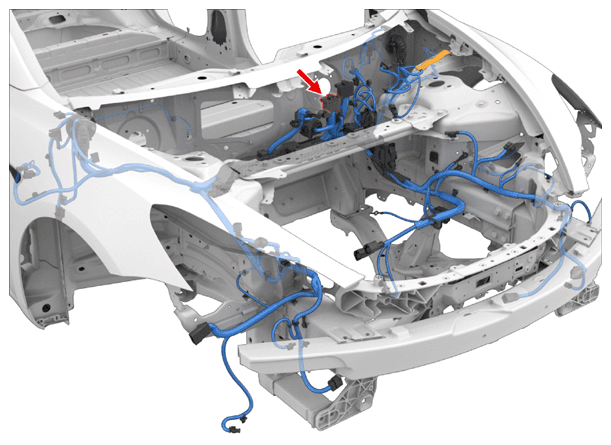

Connector Location:

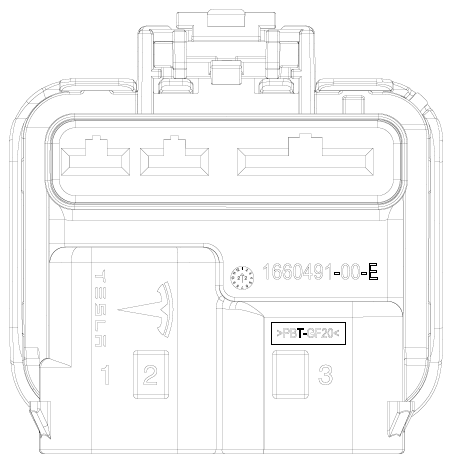

Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KSE | K80F90301 | 6.3x0.8F | RD | 16 | PIA | PIA-SEAL | X036 | 1 |
| 2 | KSE | K80F90301 | 6.3x0.8F | BU | 13 | PIA | PIA-SEAL | X190 | 1 |
| 3 | KSE | K80F90401 | 14.5x0.8F | RD | 25 | KSE | K60F00902 | X001 | 1 |
