Connector End View - X004 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1502140-00-C

Connector  LEAR E04315302

Color  BK

Connector Location:

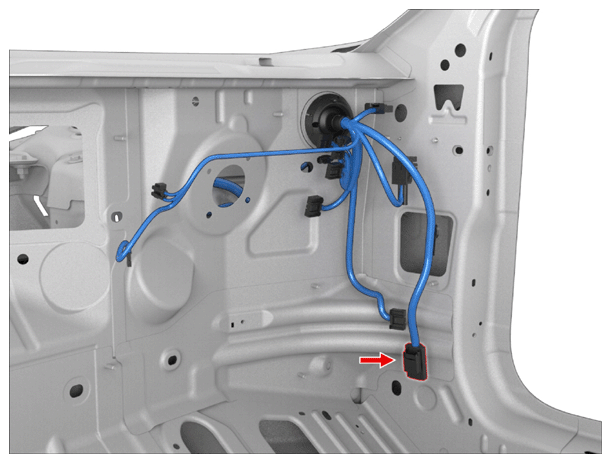

Fig 1: Connector Component Location - X004 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610424Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X004 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610425Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 LEAR E05750900 14.5x0.8F RD 35     X015 3
