Connector End View - G024 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1772452-00-A

Connector RSD RSD2D3839

Color Currently not available

Connector Location:

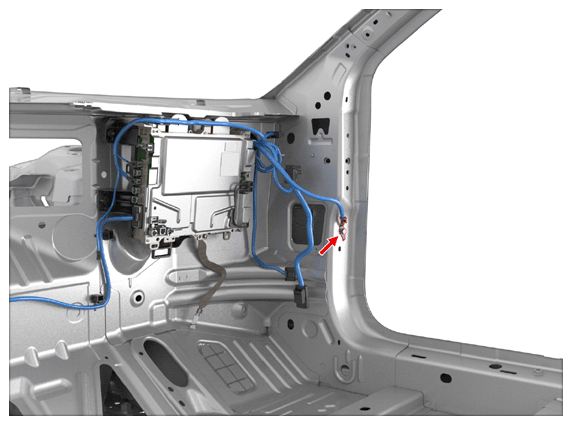

Fig 1: Connector Component Location - G024 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - G024 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				BK	6.00			X056	2
