Light - Fog - Front - Adjust: Procedure
Special tools required for this procedure:
- 1133569-00-A Pliers, Clip Removal
- On a wall, measure 14.5 in (36.8 cm) from the floor, and then apply a length of 1-inch masking tape horizontally to the wall to mark the measurement.
- Measure 25 ft (7.62 m) from the wall, and then apply a short length of 1-inch masking tape to the floor to mark the measurement.
- Position the vehicle perpendicular to the wall, aligning the vehicle front fascia with the masking tape on the floor.
- Make sure that all 4 tires are inflated to their recommended settings. See TIRE PRESSURES
.NOTE: Do not sit in the vehicle, as this will affect fog light height.
- Ensure that the vehicle is powered up and that the exterior lights are set to "On" or "Auto" by touching the vehicle center display: Controls > Quick Controls > Exterior Lights .
- Turn on the fog lights by touching the vehicle center display: Controls > Quick Controls > Fog Lamp .
- Release the push clips (x3) that attach the LH front wheel arch liner to the vehicle.

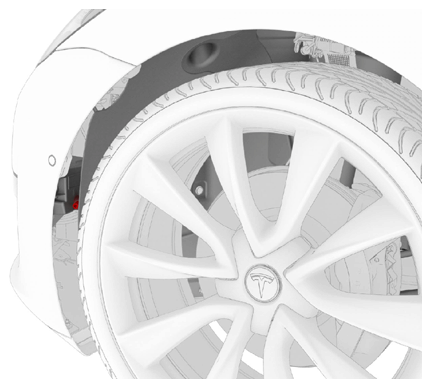

- Open the wheel liner to access the LH fog light adjuster.
- Insert a #2 Phillips head (100 mm/4 in) screwdriver into the adjuster, and adjust the fog light vertically to specification.
Wall target: max -3.0" @ 25 ft, min - 4.5" @ 25 ft, ECE and SAE target: max - 0.60 deg., min - 0.85 deg.
- Repeat steps 7 and 8 on the RH fog light.
- Reinstall the push clips (x3) that hold the LH and RH front wheel liners to the fascia.
- Use the vehicle center display to turn off the fog lights: Controls > Quick Controls > Fog Lamp .
