Track - Inner - Front Passenger Seat - Remove and Replace: Remove
- Check that the firmware is version 2023.2.11 or above. If the firmware version is not 2023.2.11 or above, update the vehicle firmware.
- Remove front passenger seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW (LH) - REMOVE AND REPLACE .
- Remove the front passenger seat inboard side shield from the seat assembly. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
- Remove the front passenger seat buckle. See BUCKLE - 1ST ROW - LH (REMOVE AND REPLACE) .
- Lay the seat on its seat back to gain access to the underside of the seat cushion.CAUTION: Protect the seat cushion from damage as necessary.

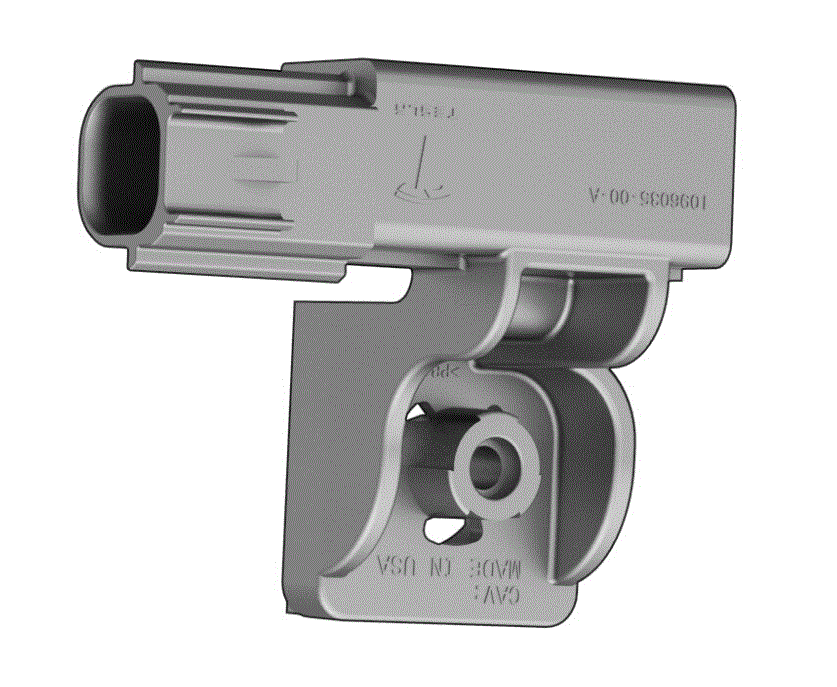

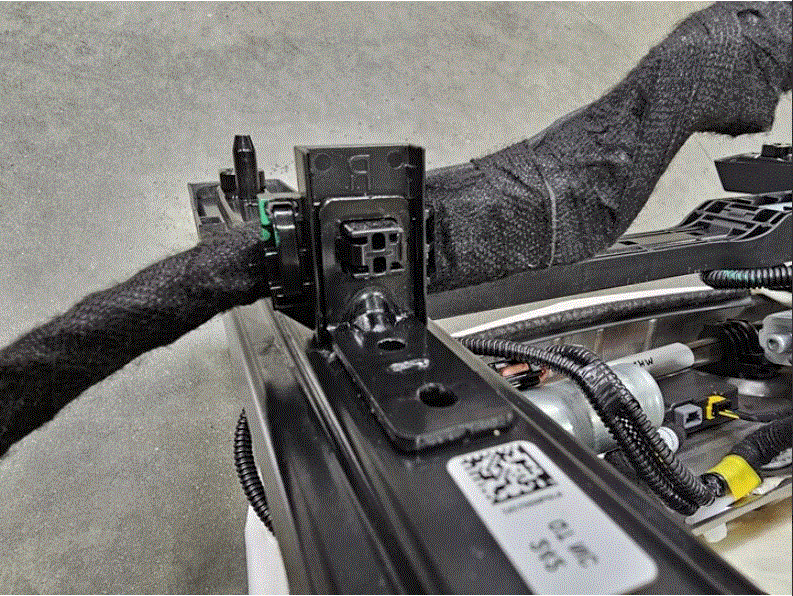

- Disconnect the seat track position sensor electrical connector.NOTE: The sensor is located on the RH front seat, outboard inner track behind the track motor.
- Remove the screw that attaches the seat track position sensor to the seat track assembly.
Tip: Use of the following tool(s) is recommended:
- Release the clip that attaches the seat harness to the outer seat rail.NOTE: Some seats may be have a push style clip or a slide lock style clip.
- Remove and discard the bolts (x2) that attach the front passenger seat inboard track to the seat assembly.
23 Nm (17.0 lbs-ft
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
- Release the front passenger front seat inner seat track from the track bridge assembly.NOTE: Pry up on bridge tack motor tab, and then slide the inner seat track away to release it.
- Roll the sides of the seat covers outwards to unlock the plastic trim from the rail, and pull the covers from the seat rail.
