Seat Track Assembly - 1st Row (RH) - Remove and Replace: Install

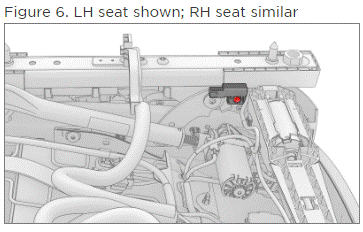

  1. Position the seat track position sensor to the seat track assembly, and then install a new screw that attaches the sensor to the assembly.
    G00649733Courtesy of TESLA, INC.

    Tip: Use of the following tool(s) is recommended:

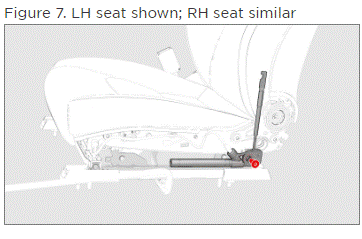

  2. Position the pretensioner to the seat track, and then install a new bolt that attaches the pretensioner to the seat track.

    40 Nm (29.5 lbs-ft)

    G00649734Courtesy of TESLA, INC.
    NOTE: Align the pretensioner guide pin to the seat track.
    1. Tip: Use of the following tool(s) is recommended:
    2. Torx T50 socket
    3. 3/8 in std ratchet
    4. 3/8 in torque wrench (installation only)
    5. 3 in extension

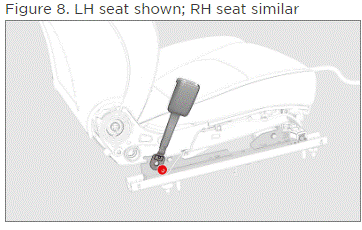

  3. Position the buckle onto the seat track assembly, and then install the patchbolt that comes with the new seat belt buckle to attach the buckle to the seat track.

    40 Nm (29.5 lbs-ft)

    G00649735Courtesy of TESLA, INC.
    1. Tip: Use of the following tool(s) is recommended:
    2. Torx T50 socket
    3. 3/8 in std ratchet
    4. 3/8 in torque wrench (installation only)
    5. 3 in extension

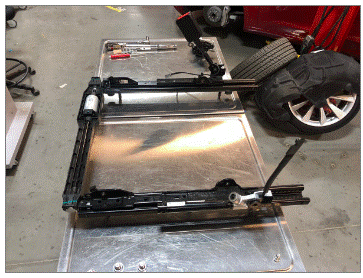

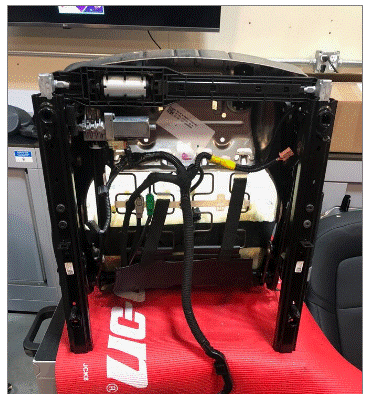

  4. Position the new seat track assembly to the seat cushion frame.
    G00649736Courtesy of TESLA, INC.
    G00649737Courtesy of TESLA, INC.

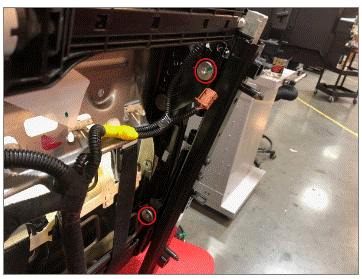

  5. Install the outboard bolts (x2) that attach the seat track to the seat cushion frame.

    23 Nm (17.0 lbs-ft)

    G00649738Courtesy of TESLA, INC.

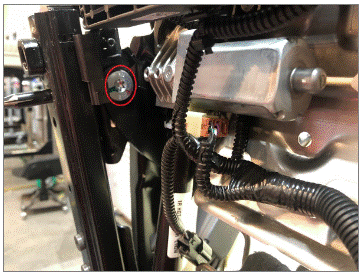

  6. Install new inboard bolts (x2) that attach the seat track to the seat cushion frame.

    23 Nm (17.0 lbs-ft)

    G00649739Courtesy of TESLA, INC.

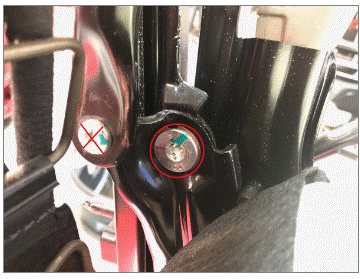

    Tip: Use of the following tool(s) is recommended: Torx T50 socket

    G00649740Courtesy of TESLA, INC.
  7. Connect the LH front seat track motor connector.
    G00595985Courtesy of TESLA, INC.

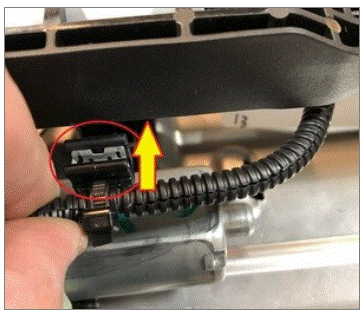

  8. Install the clip that attaches the seat track harness connector to the seat track motor.
    G00649741Courtesy of TESLA, INC.

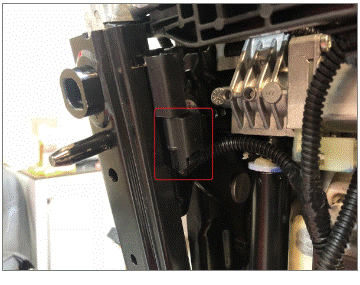

  9. Connect the seat track position sensor connector.
    G00649742Courtesy of TESLA, INC.
  10. Return the seat back to the upright position.

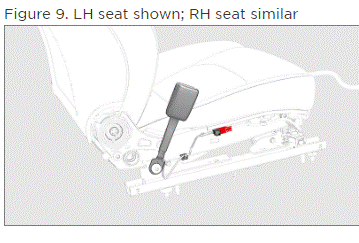

  11. Connect the buckle connector.
    G00649743Courtesy of TESLA, INC.
  12. Install the front passenger seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE)

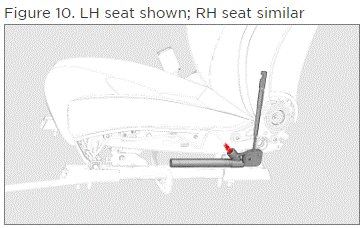

  13. Connect the pretensioner electrical connector.
    G00649744Courtesy of TESLA, INC.
  14. Install the front passenger seat outboard side shield. See SIDE SHIELD - OUTBOARD - DRIVER SEAT (REMOVE AND REPLACE)
  15. Install the front passenger seat. See Seat Assembly - 1st Row (LH) - Remove and Replace .
