Frame - Seat Cushion - Driver Seat - Remove and Replace: Notes

Last modified: 20/03/2023 13:48:47

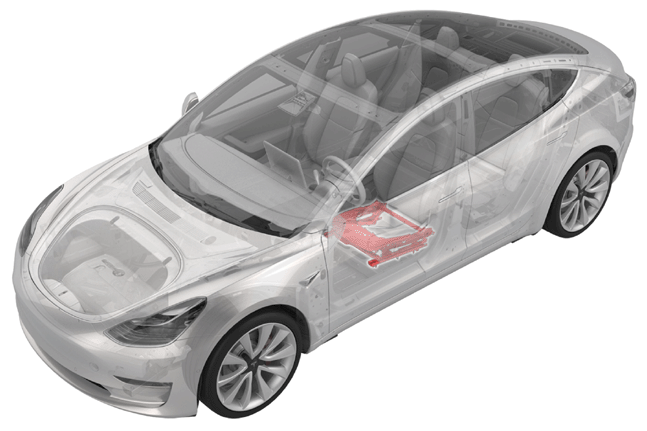

Fig 1: Driver Seat - Seat Cushion Frame Component Location

Courtesy of TESLA, INC.

NOTE: See Personal Protection to make sure to wear proper PPE when performing below procedure.

Revision History:

2023-03-23: Added seat track position sensor remove/install steps.
2023-12-15: Added steps to remove and install pre-tensioner.

WARNING: Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.

1133787-00-A Key, Seat Belt Release, Model 3
1082447-07-A Torx Plus T45
