Trim - Headrest - Driver - Remove and Replace: Remove

  1. Partially recline the driver seatback to provide more working room.
  2. Depress the material on the LH side of the outboard headrest post to expose the retaining spring that restrains the post into the driver seatback.
  3. With the headrest removal tool handle horizontal and the tool tabs pointing down, insert the tabs into the LH side of the outboard headrest post.
    NOTE: The shaft of the tool points to the rear of the vehicle.
  4. Press the headrest removal tool in and down, rotate the tool handle clockwise to vertical to release the spring from the headrest post, and then leave the tool attached.

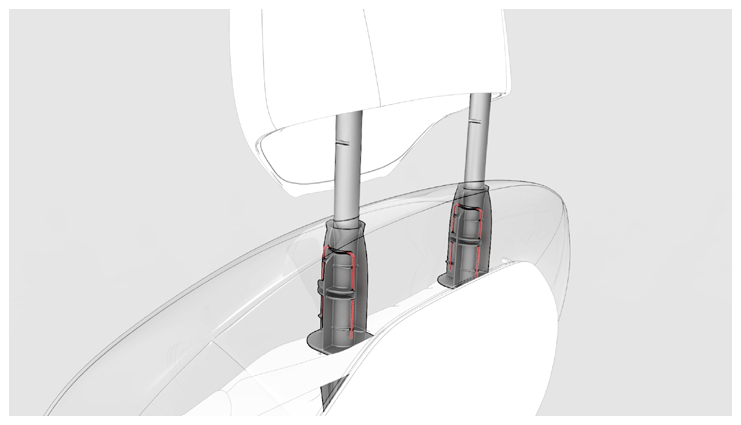

    G14740196Courtesy of TESLA, INC.
  5. Depress the material on the LH side of the inboard headrest post (under the headrest) to expose the retaining spring that restrains the post into the driver seatback.
  6. With the second headrest removal tool handle horizontal and the tool tabs pointing down, insert the tabs into the LH side of the inboard headrest post.
    NOTE: The shaft of the tool points to the rear of the vehicle.
  7. Press the headrest removal tool in and down, rotate the tool handle clockwise to vertical to release the spring from the headrest post, and then leave the tool attached.
  8. Remove the headrest from the driver seatback.

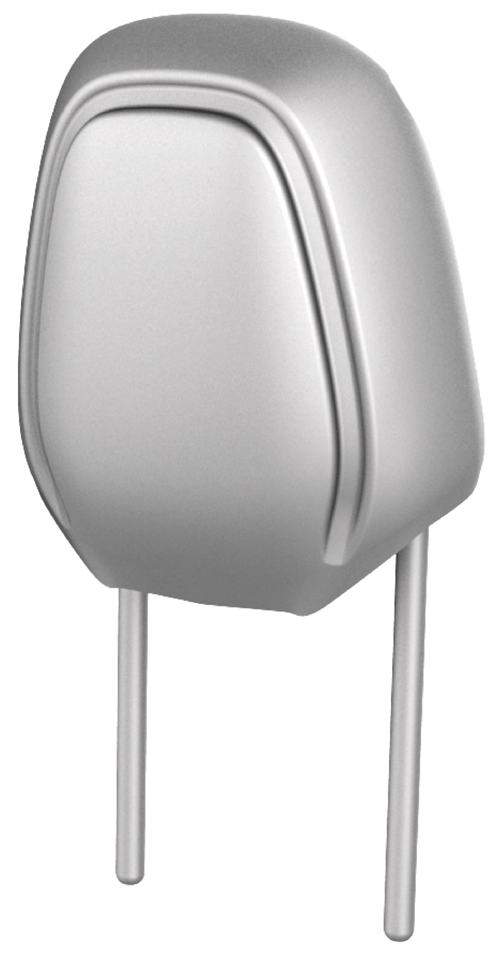

    G14740197Courtesy of TESLA, INC.
  9. Rotate the headrest removal tool handles counter-clockwise to horizontal, and then remove the tools from the driver seatback.
