Armrest - 2nd Row - Remove and Replace: Remove

  1. Open all four doors and move the front LH and RH seats fully forward.
  2. Fold down the RH 2nd row seatback assembly.

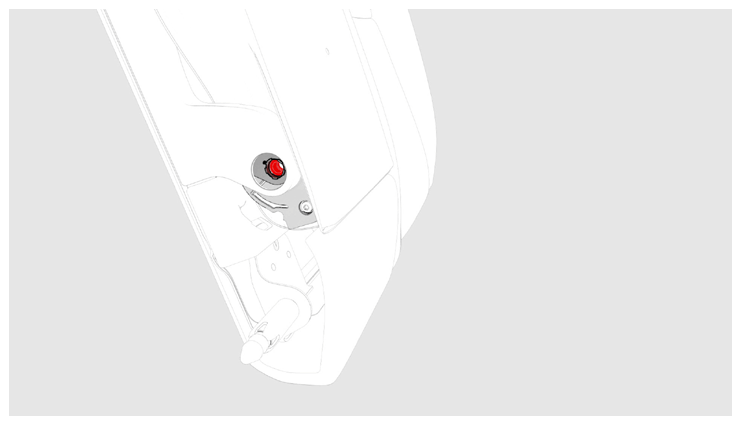

  3. Remove the bolt that attaches the 2nd row armrest to the LH 2nd row seat back assembly.

    15 N.m (11.1 ft-lbs)

    G14740202Courtesy of TESLA, INC.

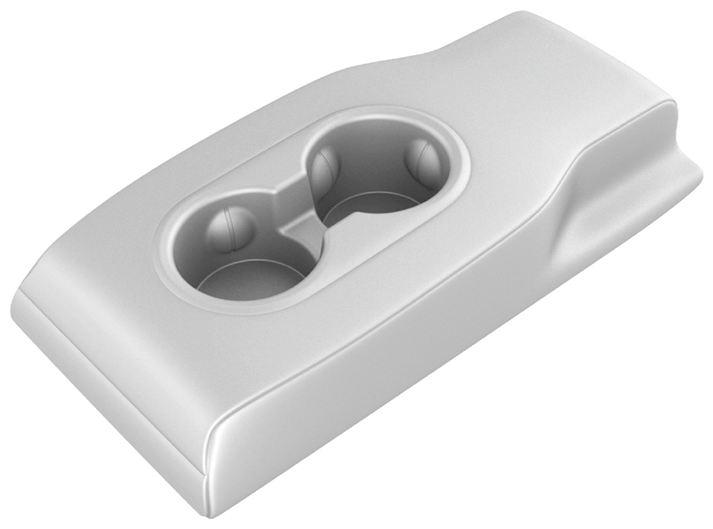

  4. Pull the RH side of the 2nd row center armrest towards the front of the vehicle, and then slide the 2nd row armrest out of the LH 2nd row seat back assembly.
    G14740203Courtesy of TESLA, INC.
