Adjustment Guide - Headrest - 2nd Row - Remove and Replace: Install

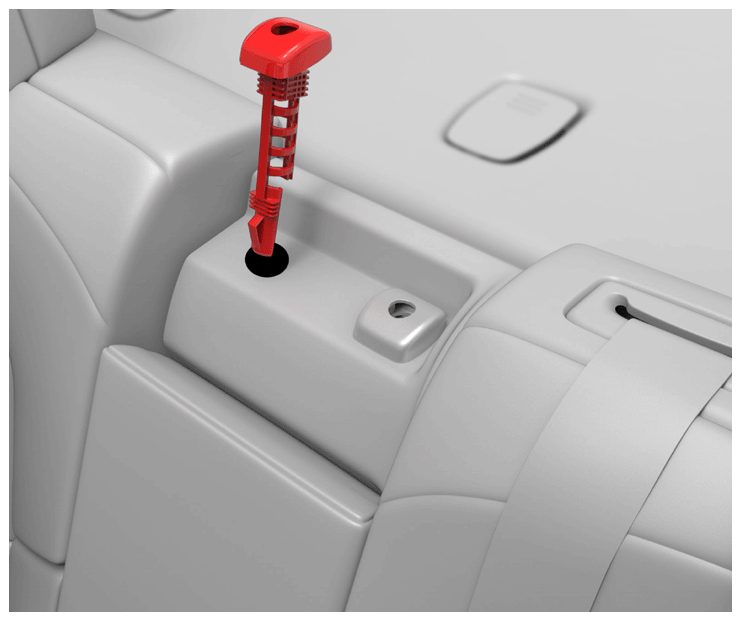

  1. Fully insert the adjustment guide into the seat so that the adjustment button faces towards the RH side of the vehicle.
    G14740200Courtesy of TESLA, INC.
  2. Install the 2nd row center headrest. See HEADREST - 2ND ROW - CENTER (REMOVE AND REPLACE) .
