Panel - Aero Shield - Mid - Remove and Replace: Remove

  1. Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .
  2. Remove the bolts (x13) that attach the mid aero shield panel to the vehicle, and then remove the panel from the vehicle.

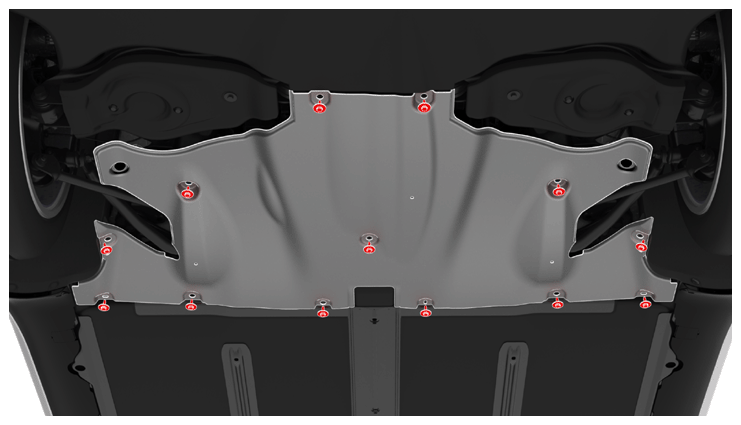

    G14739761Courtesy of TESLA, INC.

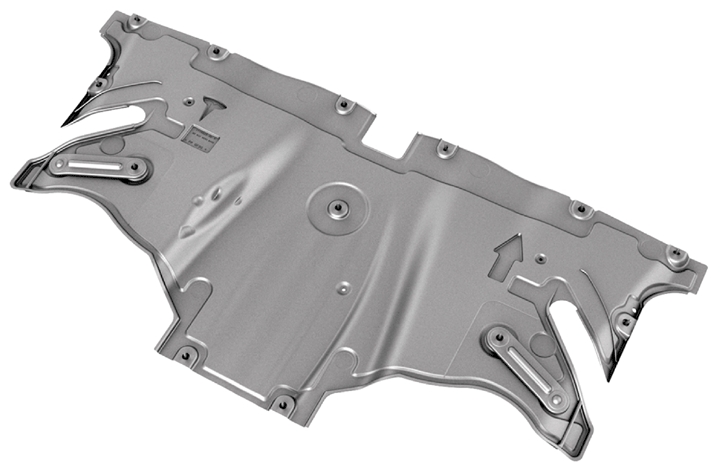

    G14739762Courtesy of TESLA, INC.
  3. Inspect the HV battery vent assemblies at the rear of the HV battery for the presence of breathers.

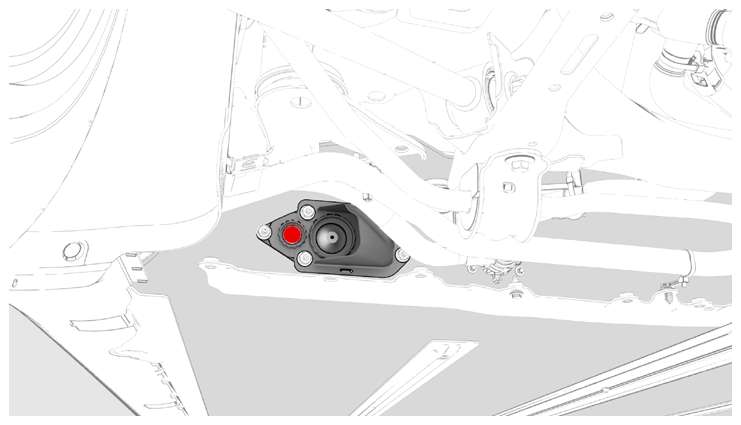

    G14739763Courtesy of TESLA, INC.

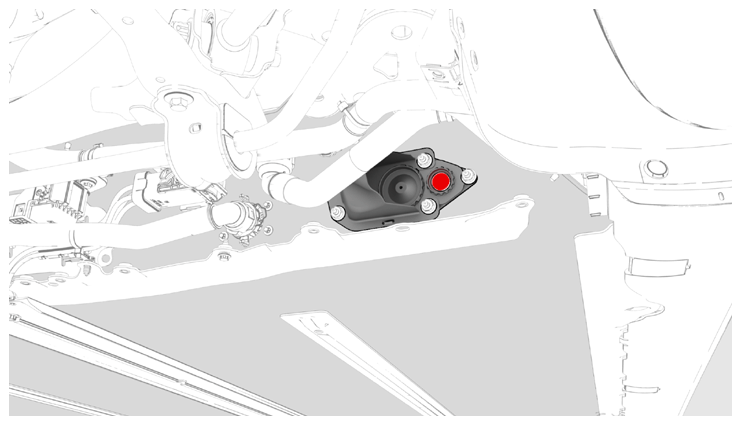

    G14739764Courtesy of TESLA, INC.
  4. If any breathers are missing, install them now. See BREATHERS - HV BATTERY (REMOVE AND REPLACE) .
    NOTE: After installing the breather(s), if necessary, return to the procedure that required removal of the mid aero shield panel.
