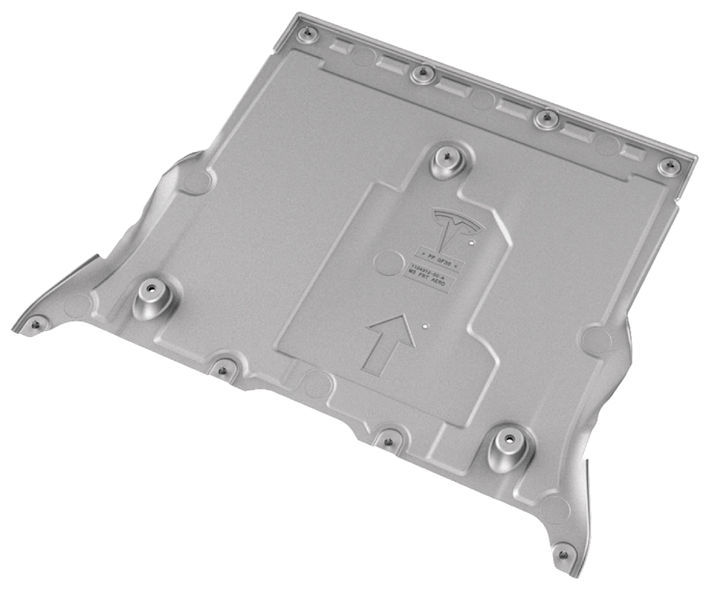

Panel - Aero Shield - Front - Remove and Replace: Remove
- Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .

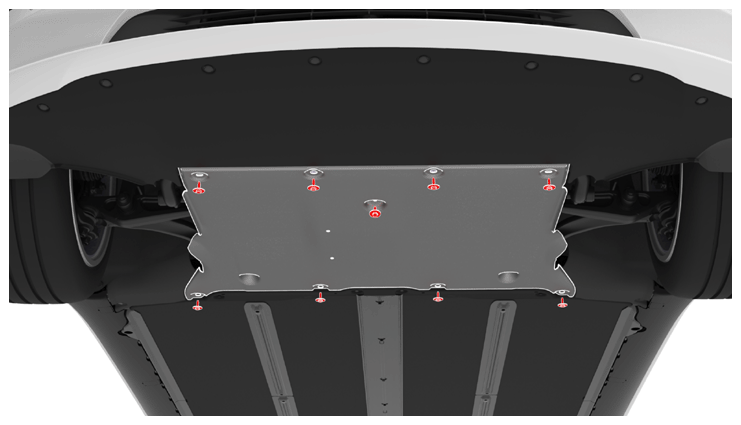

- Remove the bolts (x9) that attach the front aero shield panel to the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 1/4 in std ratchet
- 1/4 in torque wrench (installation only)
- 4 in extension
- Remove the nuts (x2) that attach the front aero shield panel to the vehicle, and then remove the panel from the vehicleNOTE: Use of the following tool(s) is recommended:
- 15 mm socket
- 1/4 in std ratchet
- 1/4 in torque wrench (installation only)
- 4 in extension
