Bracket - License Plate - Front (EMEA) - Retrofit using Jig: Procedure

Clean the front center surface of the front fascia with isopropyl alcohol (IPA) wipe, and then allow surface to dry before continuing.

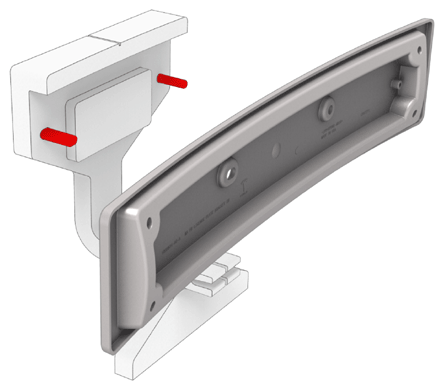

Put the front license plate bracket on the jig: Line up the 2 holes on the front license plate bracket with the alignment pins on the jig.

Courtesy of TESLA, INC.

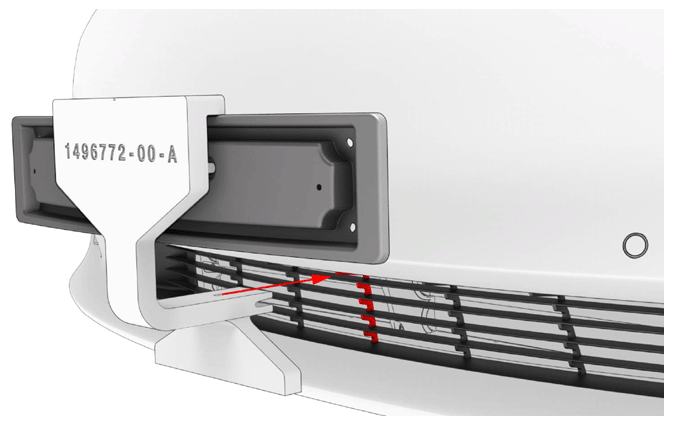

Put the jig on the front fascia: Line up the center indicator (cut out slit) with the center of the front fascia grille.

Courtesy of TESLA, INC.

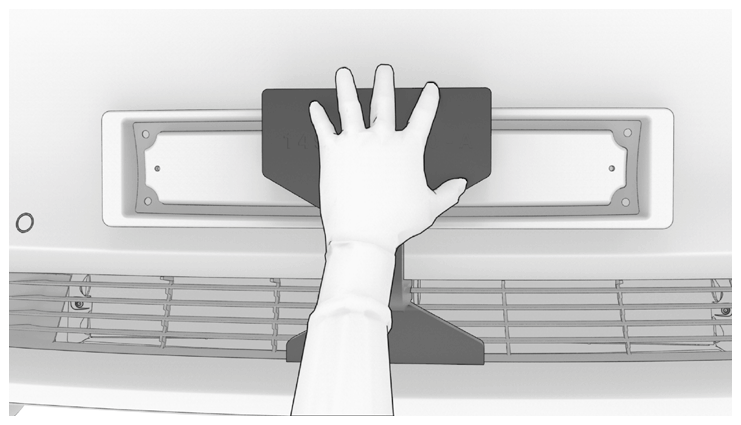

NOTE: Apply enough force on the head of the jig causing an even contact surface with the front fascia grille and the front license plate bracket.

NOTE: Make sure to hold the jig by placing your hand on the head of the jig.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Wear eye and ear protection before continuing.

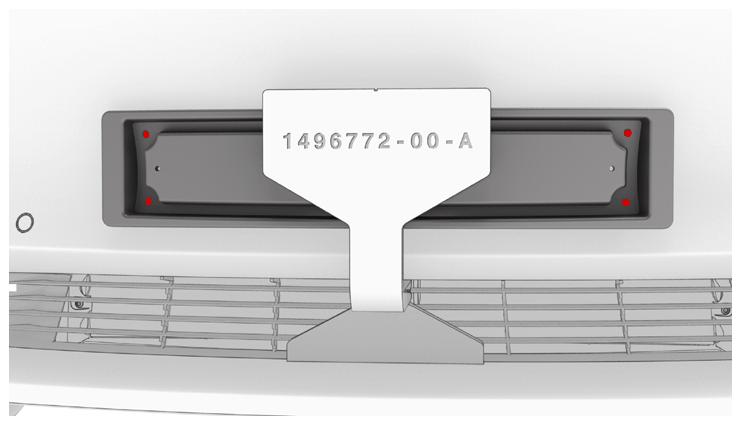

Use a 7/64 in (3 mm) drill bit to drill 4 holes through the front fascia.
CAUTION: Only drill through the top surface of the front fascia. Drilling too far can result in damage to the vehicle.

Courtesy of TESLA, INC.
Install the self tapping screws (part number 1104972-00-A) (x4) that attach the front license plate bracket to the front fascia.
1 N.m (.7 ft-lbs)

CAUTION: Do not over torque the screws to prevent damage to the front fascia.

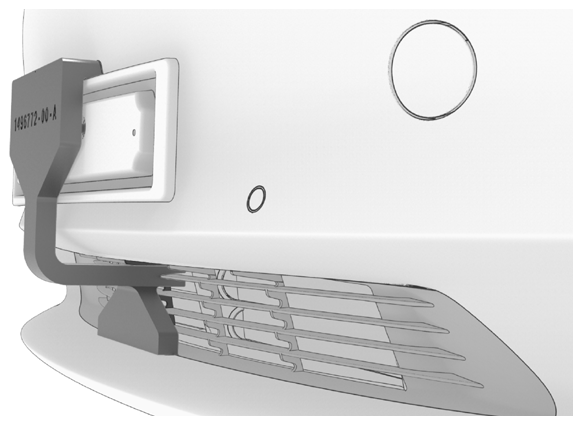

Remove the jig by sliding it out from the front fascia grille
