Garnish - Trunk - Remove and Replace: Remove

  1. Open the trunk.

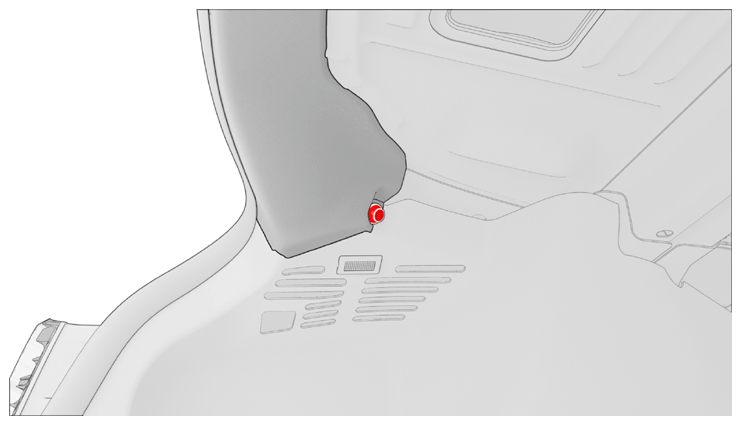

  2. Release the push clips (x2) that attach the ends of the trunk garnish to the body.
    NOTE: LH shown, RH similar.
    G14740773Courtesy of TESLA, INC.

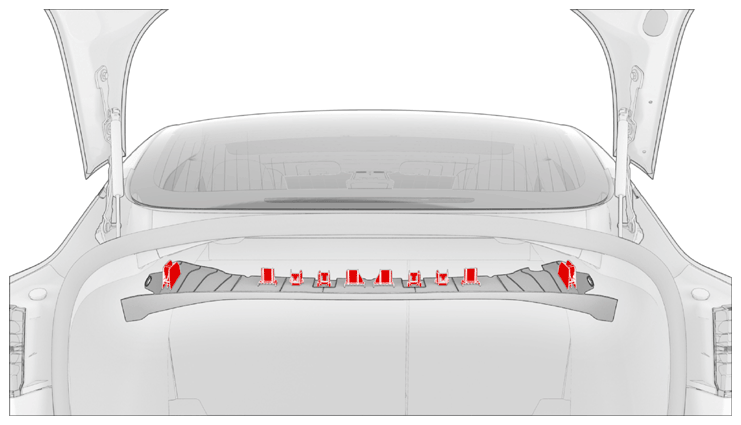

  3. Release the tabs that attach the trunk garnish to the body, and then remove the trunk garnish from the vehicle.

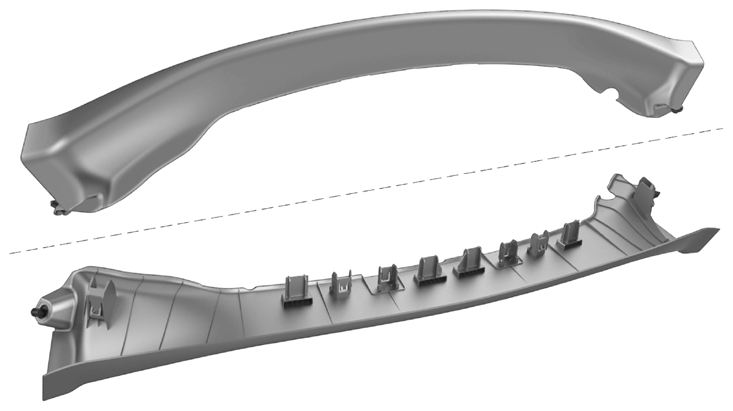

    NOTE: If the part removed has less tabs than shown in the illustration then the new part must be reworked to remove the extra tabs.
    G14740774Courtesy of TESLA, INC.
    G14740775Courtesy of TESLA, INC.
