Underhood Storage Unit - Remove and Replace: Install
- If the same underhood storage unit removed is being installed, skip to step 4. If a new underhood storage unit is being installed, continue to the next step.

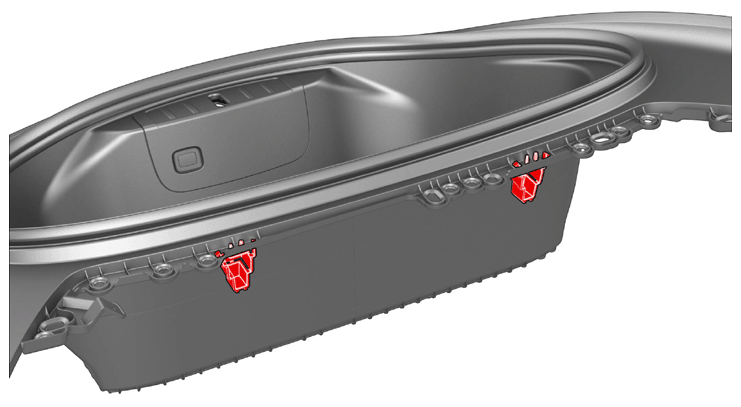

- Install the reinforcement clips (x2) to the rear of the underhood storage unit.

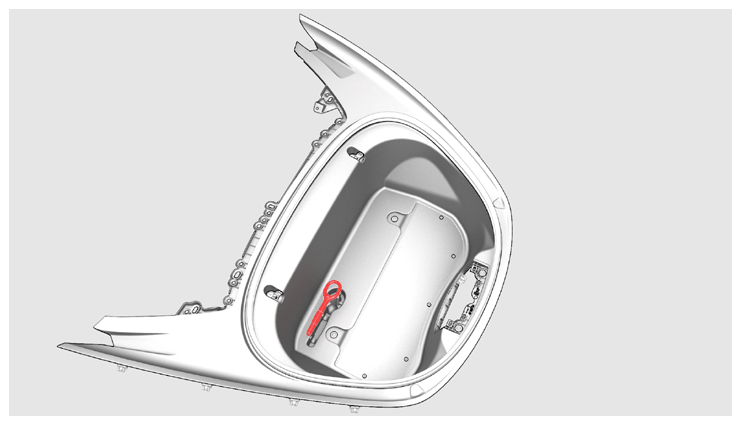

- Install the tow hook on the underhood storage unit.
- Make sure that the HVIL harness branch of the A/C compressor HV harness is properly routed away from and does not rest upon the shock tower brace.

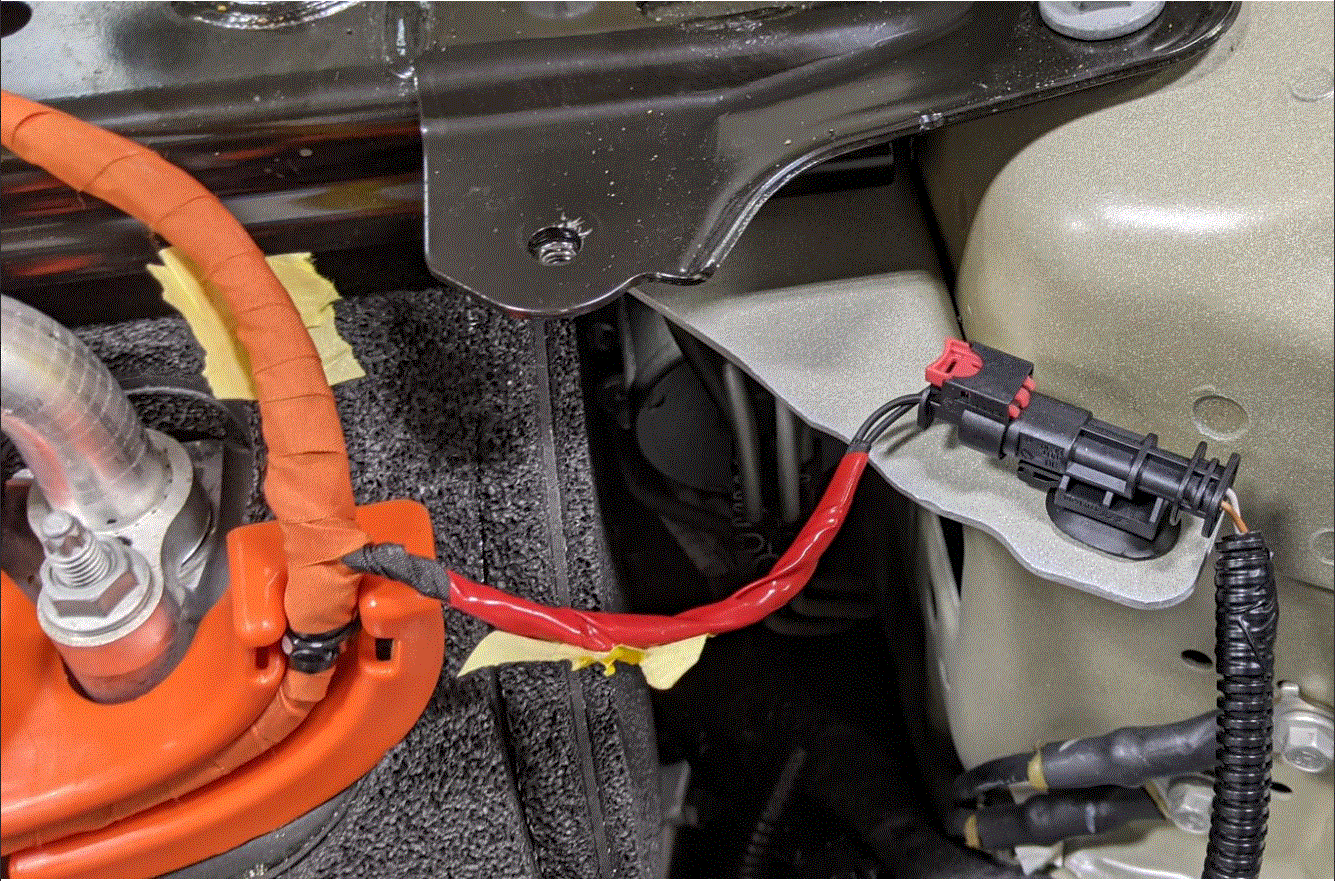

Harness properly routed away from the shock tower brace
multimedia:A supplement to the article is available. - Install the underhood storage unit into the vehicle, and then fasten the clips (x10) that attach the underhood storage unit to the vehicle.NOTE: Make sure that all clips for the underhood storage unit are engaged.
- Install the bolts (x7) that attach the underhood storage unit to the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 1/4 in std ratchet
- 2 in extension
- Use a light to inspect the inside of the hood latch housing for any foreign object that may have dropped in. If any object is found, remove it and confirm that the hood latch is operating as intended.
- Install the underhood storage unit carpet.
- Install the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .CAUTION: Prior to installation of the hood latch cover, inspect the clips (x4) that attach the cover to the vehicle body for any damage. If damage is found or when any clip is dislodged or missing, replace the hood latch cover with a new one since the hood latch panel clips are non serviceable parts.
- Install the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
