Garnish - Trunk - Remove and Replace: Install

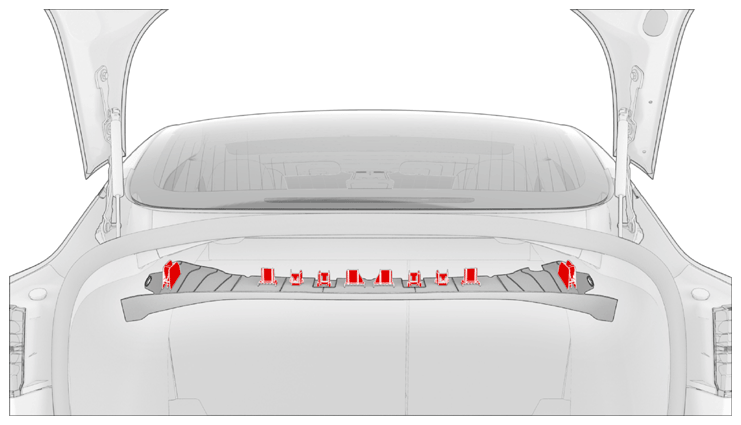

  1. Install the trunk garnish onto the body, and fasten the tabs that attach the trunk garnish to the body.
    NOTE: Make sure the trunk garnish is firmly attached to the body.
    G14740778Courtesy of TESLA, INC.

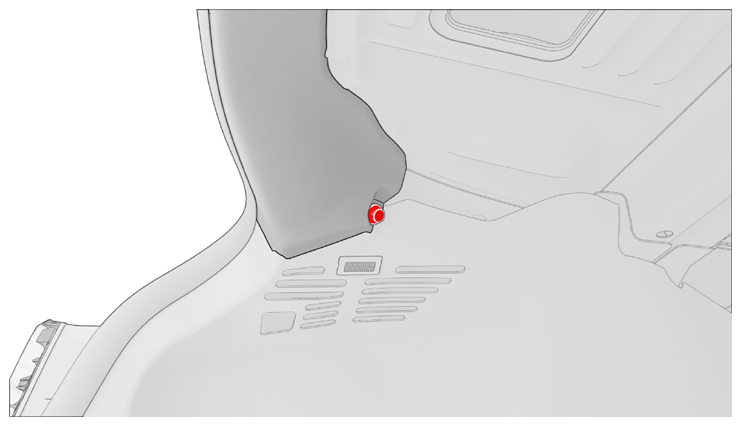

  2. Fasten the push clips (x2) that attach the ends of the trunk garnish to the body.
    NOTE: LH shown, RH similar.
    G14740779Courtesy of TESLA, INC.
  3. Close the trunk.
