Headliner (Non-Heat Pump) - Remove and Install: Install
- With the help of an assistant, move the headliner through the front passenger doorway and into the cabin.

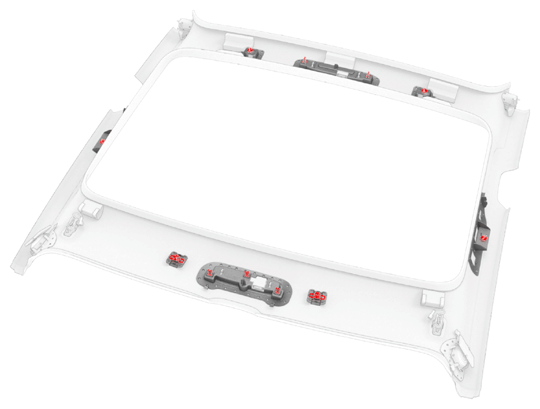

- Install the headliner to the body, and then fasten the clips that attach the headliner to the body.
- Connect the electrical harness to the headliner connector.

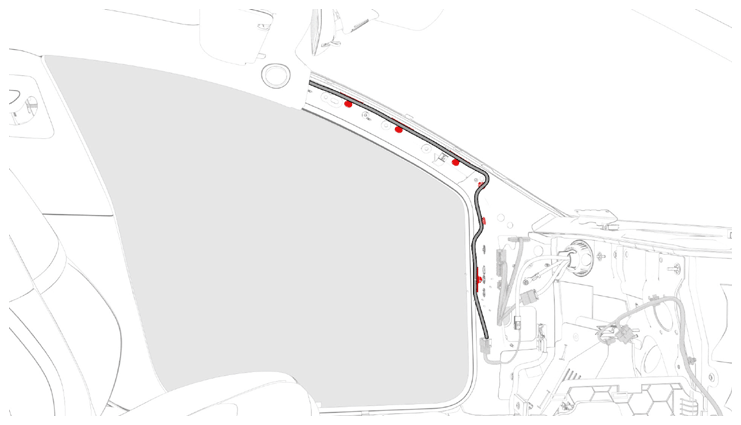

- Fasten the clips that attach the headliner electrical harness to the LH A-pillar area.
- Install the rear view mirror. See MIRROR - REAR VIEW (REMOVE AND REPLACE) .
- Install the lower quad camera cover. See QUAD CAMERA COVER - LOWER (REMOVE AND REPLACE) .
- Install the LH sun visor check base. See CHECK BASE - SUN VISOR - LH (REMOVE AND REPLACE) .
- Install the LH sun visor. See SUN VISOR - LH (REMOVE AND REPLACE) .
- Install the LH upper A-pillar trim. See TRIM - A-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Install the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Install the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Install the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
- Install the LH upper B-pillar trim, and then fasten the clips that attach the trim to the vehicle. See TRIM - B-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

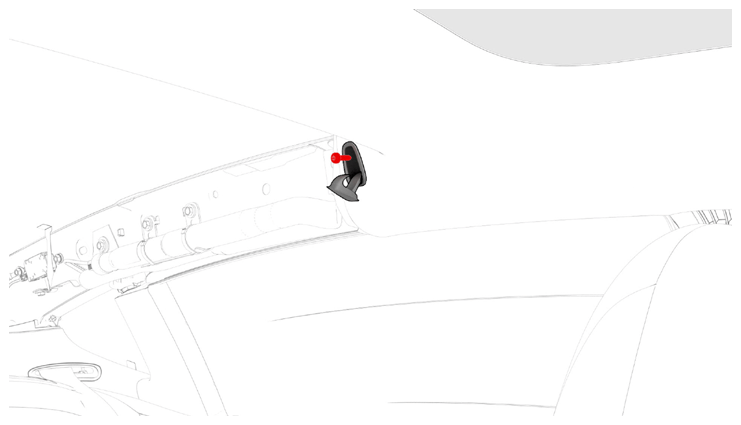

- Install the screw that attaches the LH rear coat hook to the body.
2.5 N.m (1.8 ft-lbs)

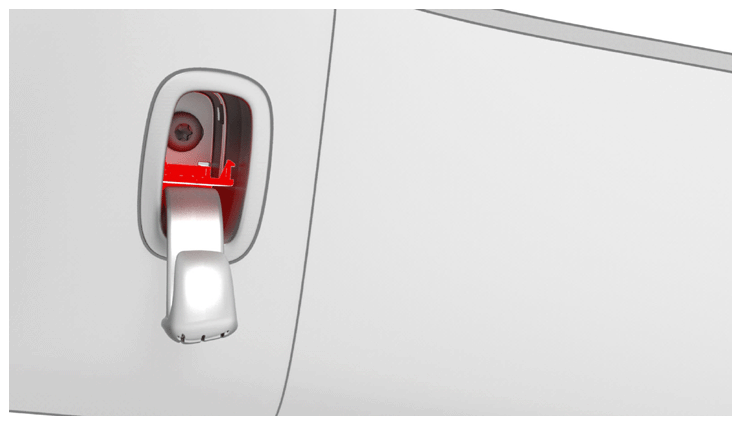

- Close the LH rear coat hook screw cover.
- Close the LH rear coat hook.
- Install the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .
- Repeat step 7 through step 17 on the RH side of the vehicle.
