Vent - Front - RH - Remove and Replace: Remove

  1. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  2. Remove the LH and RH air wave end caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  3. Remove the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  4. Remove the vent finisher. See FINISHER - VENT (REMOVE AND REPLACE) .

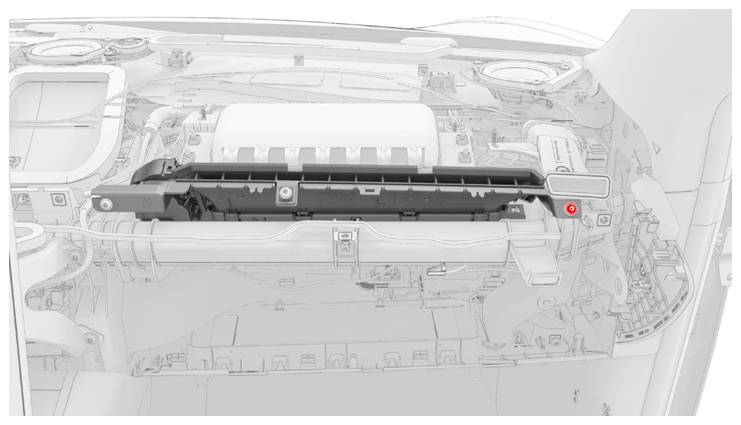

  5. Remove the screw that attaches the RH front vent to the instrument panel, and then pull the RH side of the RH front vent to release it from the instrument panel.

    2.3 N.m (1.7 ft-lbs)

    G14740732Courtesy of TESLA, INC.

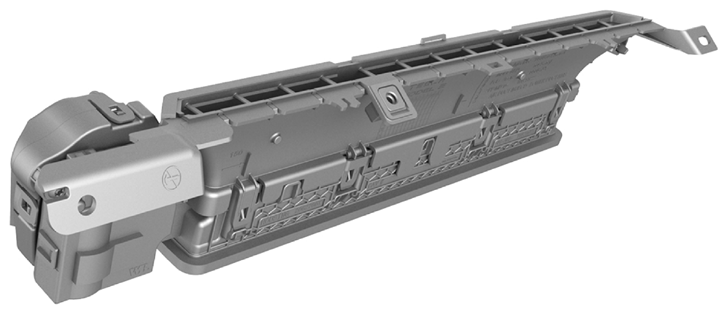

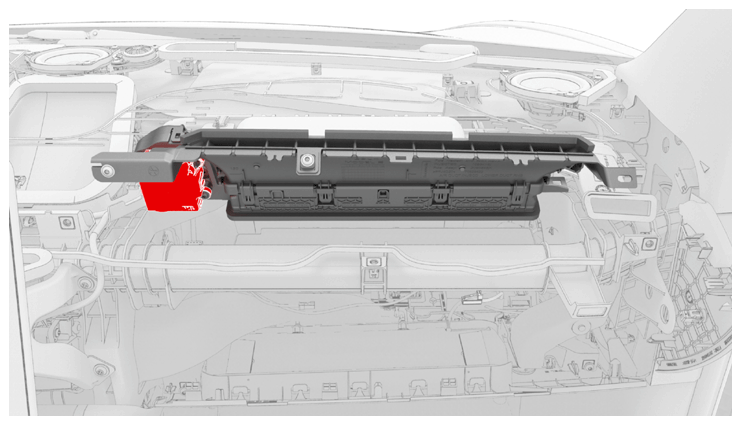

  6. Disconnect the electrical connector from the RH front vent, and then remove the RH front vent from the vehicle.
    G14740733Courtesy of TESLA, INC.
    G14740734Courtesy of TESLA, INC.
