IP Carrier (LHD) - Remove and Replace: Remove

  1. Remove the IP carrier. See IP CARRIER (REMOVE AND INSTALL) .
  2. Release the clips (x2) that attach the steering column upper gap hider to the steering column.
    G00622411Courtesy of TESLA, INC.
  3. Remove the steering column upper shroud from the instrument panel.
    G00622412Courtesy of TESLA, INC.

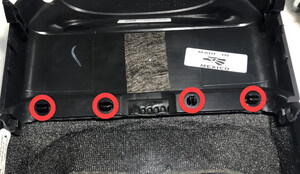

  4. Release the clips (x4) that attach the steering column upper gap hider to the steering column shroud.
    G00622413Courtesy of TESLA, INC.
  5. Remove the bolt that attaches the LH side window defroster duct to the IP carrier, and then remove the duct from the carrier.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket

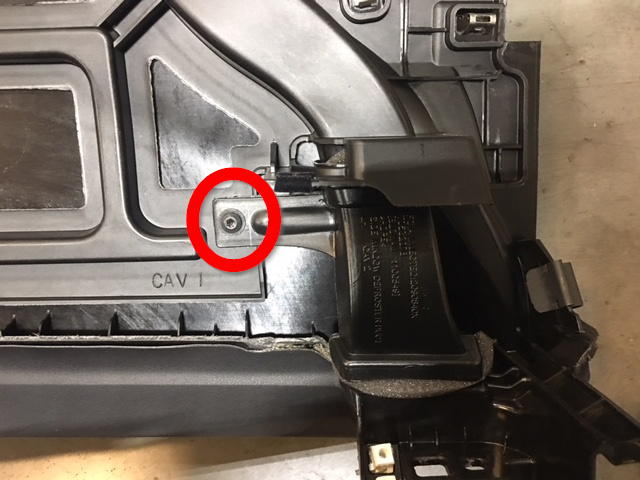

    G00622414Courtesy of TESLA, INC.
  6. Remove the bolt that attaches the RH side window defroster duct to the IP carrier, and then remove the duct from the carrier.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket

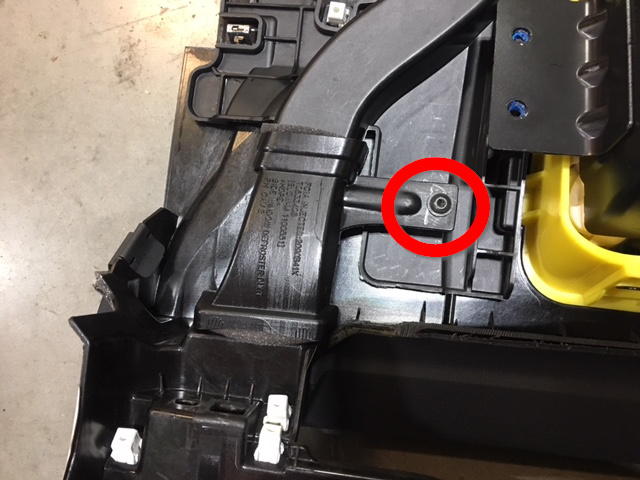

    G00622415Courtesy of TESLA, INC.
  7. Release the tabs (x4) that attach the LH defrost duct cover to the IP carrier, and then remove the cover from the carrier.
    G00622416Courtesy of TESLA, INC.

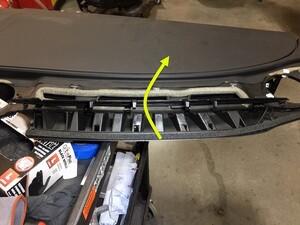

    G00622417Courtesy of TESLA, INC.

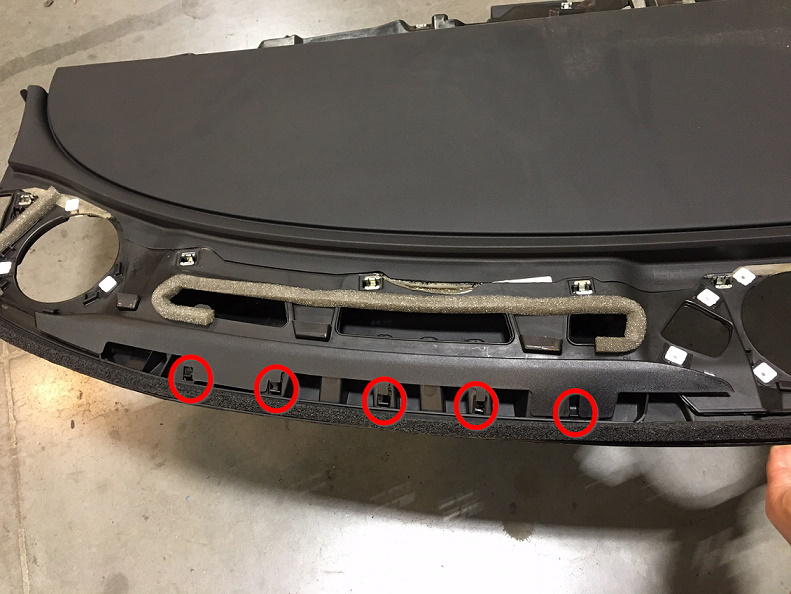

  8. Release the tabs (x5) that attach the RH defrost duct cover to the IP carrier, and then remove the cover from the carrier.
    G00622418Courtesy of TESLA, INC.

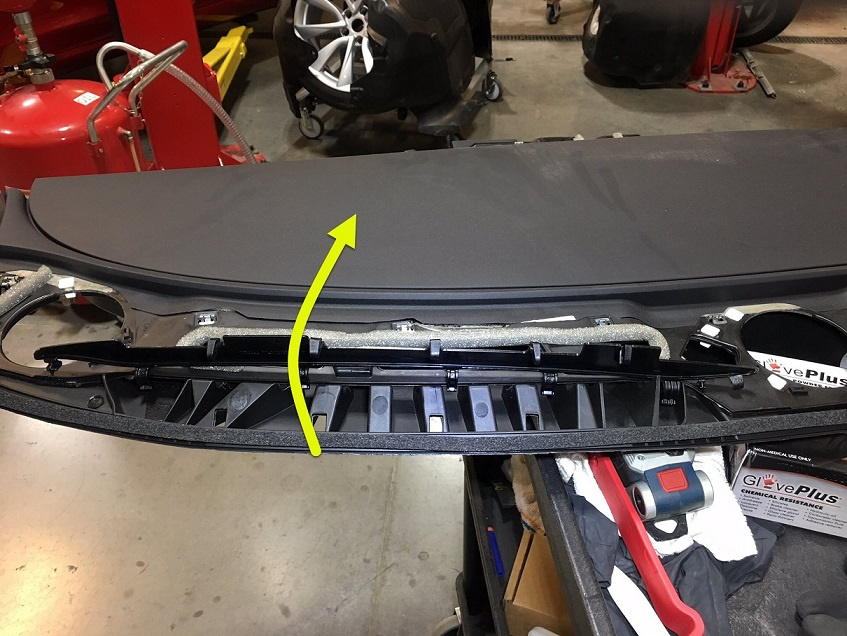

    G00622419Courtesy of TESLA, INC.

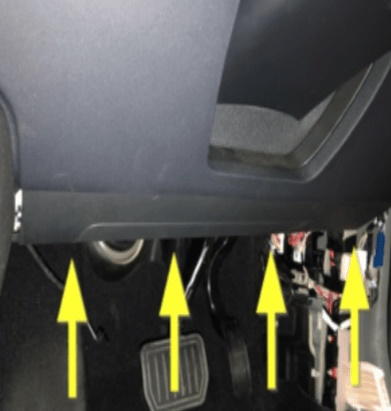

  9. Release the clips (x4) that attach the driver knee airbag cover to the IP carrier, and then remove the cover from the carrier.
    G00622420Courtesy of TESLA, INC.

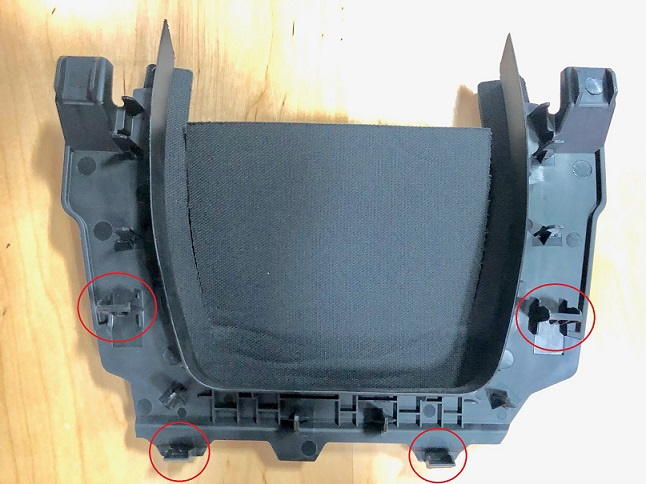

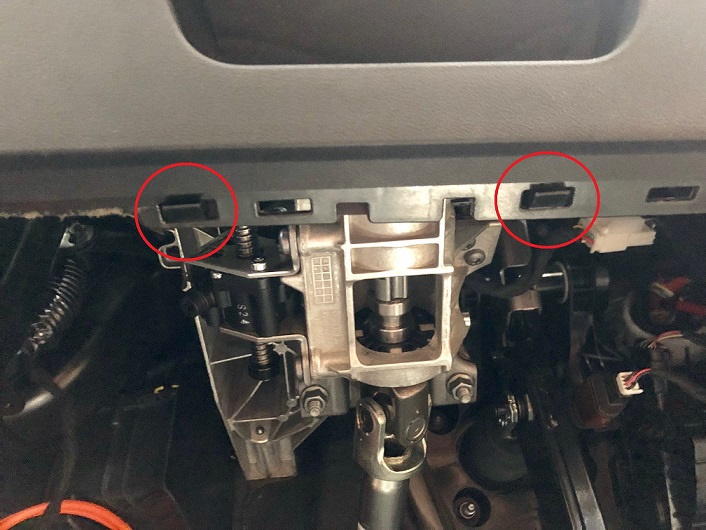

  10. Release the tabs (x2) and clips (x4) that attach the lower gap hider to the IP carrier, and then remove the gap hider from the carrier.
    G00622421Courtesy of TESLA, INC.
    G00622422Courtesy of TESLA, INC.

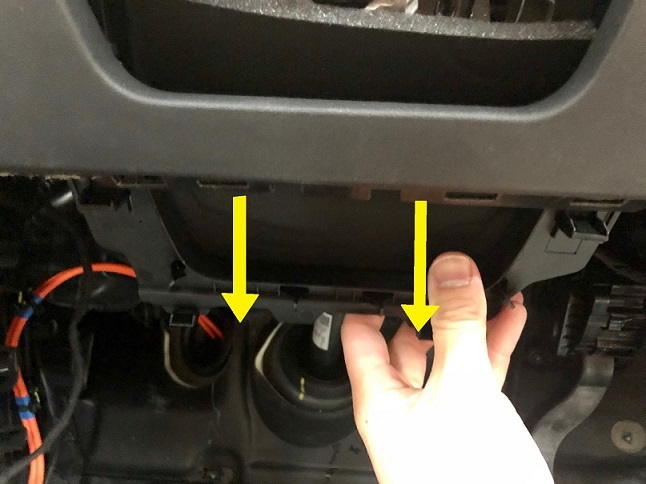

    G00622423Courtesy of TESLA, INC.
  11. Remove the front passenger airbag from the IP carrier. See AIRBAG - FRONT PASSENGER (REMOVE AND INSTALL) .
