IP Carrier (LHD) - Remove and Replace: Install

  1. Model 3 built before August 22, 2017 only: Refer to Toolbox Article 39237 to determine if felt tape should be applied to prevent NVH issues with the top pad.

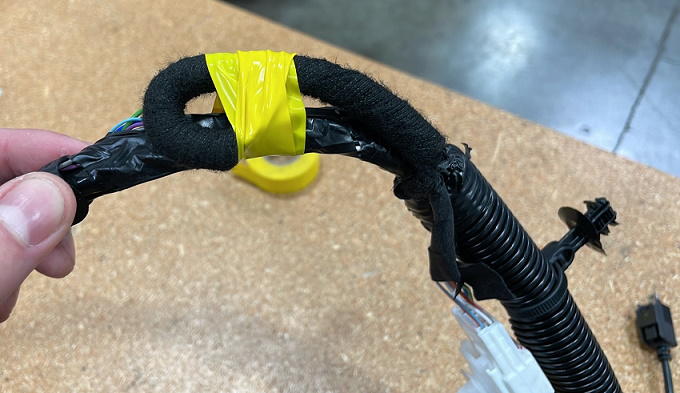

  2. If the new IP carrier does not have tweeter holes, the tweeter connectors must be taped back to harness before the replacement carrier is installed.
    G00622424Courtesy of TESLA, INC.
    CAUTION: Do NOT cut holes into the new IP carrier as an attempt to retrofit the tweeters.
    CAUTION: Failure to tape back the existing tweeter connector may result in NVH issues.
  3. Install the front passenger airbag from the IP carrier. See AIRBAG - FRONT PASSENGER (REMOVE AND INSTALL)

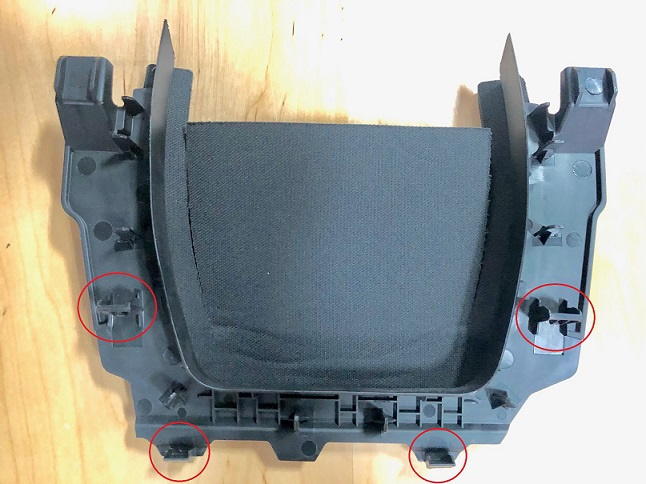

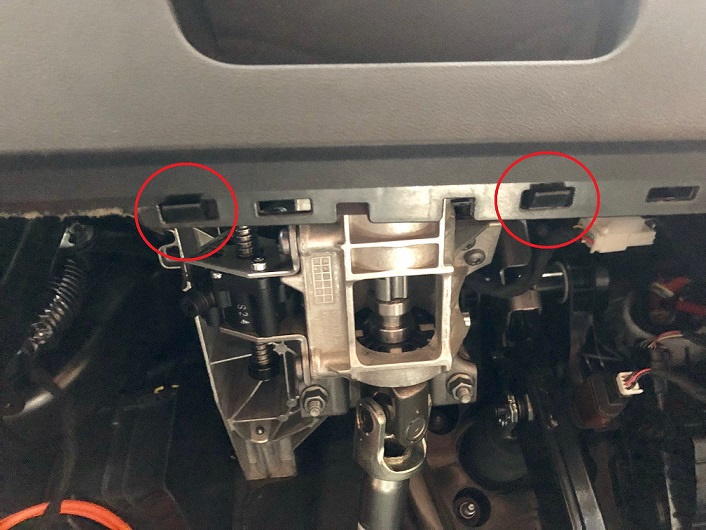

  4. Position the lower gap hider on the IP carrier, and then install the tabs (x2) and clips (x4) that attach the gap hider to the carrier.
    G00622425Courtesy of TESLA, INC.
    G00622426Courtesy of TESLA, INC.

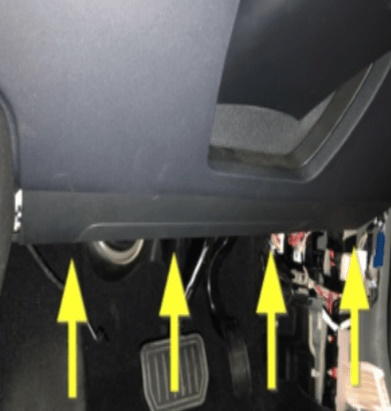

  5. Position the driver knee airbag cover on the IP carrier, and then install the clips (x4) that attach the cover to the carrier.
    G00622427Courtesy of TESLA, INC.

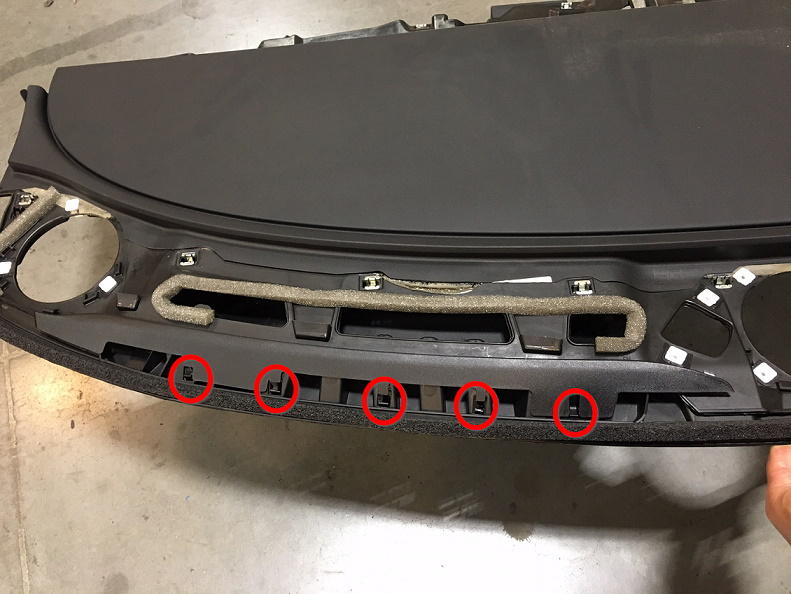

  6. Position the RH defrost duct cover on the IP carrier, and then install the tabs (x5) that attach the cover to the carrier.
    G00622428Courtesy of TESLA, INC.
  7. Position the LH defrost duct cover on the IP carrier, and then install the tabs (x4) that attach the cover to the carrier.
    G00622429Courtesy of TESLA, INC.

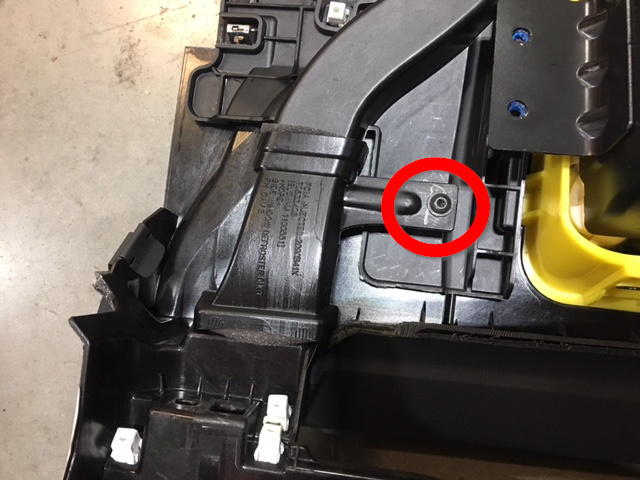

  8. Position the RH side window defroster duct on the IP carrier, and then install the bolt that attaches the duct to the carrier.

    2.3 N.m (1.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket
    G00622430Courtesy of TESLA, INC.

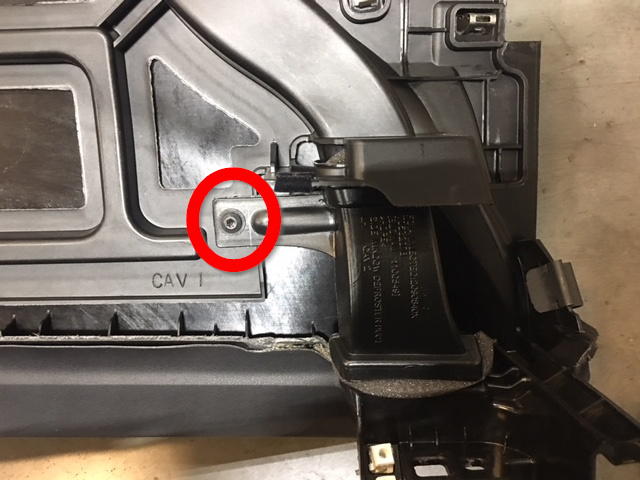

  9. Position the LH side window defroster duct on the IP carrier, and then install the bolt that attaches the duct to the carrier.

    2.3 N.m (1.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket
    G00622431Courtesy of TESLA, INC.

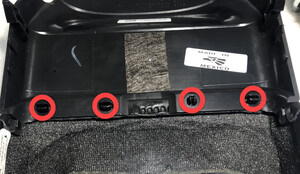

  10. Install the clips (x4) that attach the steering column upper gap hider to the steering column shroud.
    G00622432Courtesy of TESLA, INC.
  11. Install the steering column upper shroud on the instrument panel.
  12. Install the clips (x2) that attach the steering column upper gap hider to the steering column.
    G00622433Courtesy of TESLA, INC.
  13. Install the IP carrier. See IP CARRIER (REMOVE AND INSTALL) .
