Finisher - Vent - Remove and Replace: Remove

  1. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  2. Remove both the LH and RH air wave end caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  3. Remove the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .

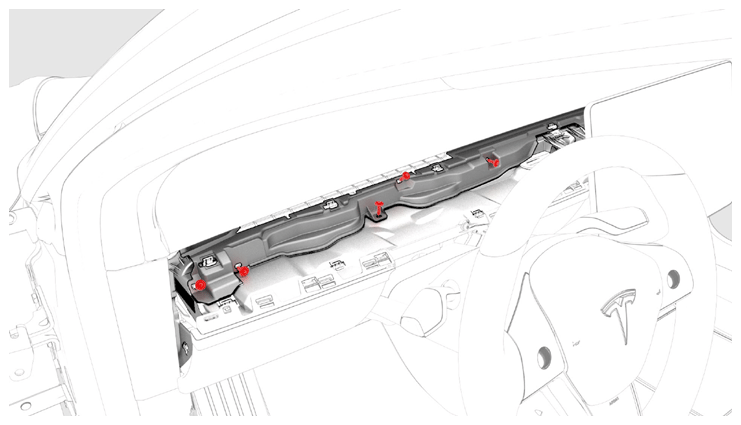

  4. Remove the screws that attach the LH side of the vent finisher.

    2.3 N.m (1.7 ft-lbs)

    G14740682Courtesy of TESLA, INC.

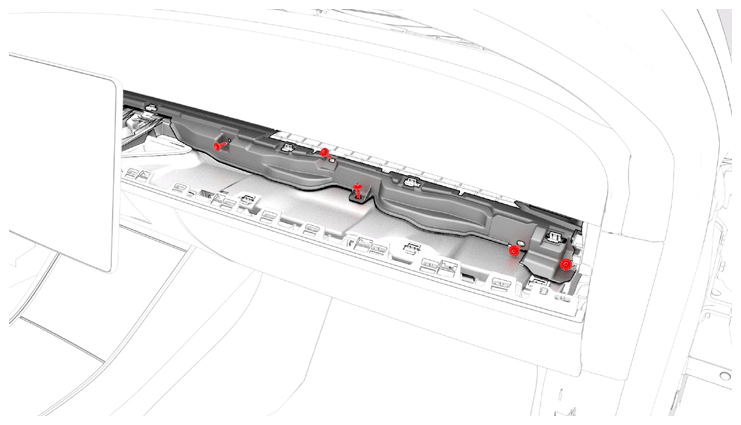

  5. Remove the screws that attach the RH side of the vent finisher.

    2.3 N.m (1.7 ft-lbs)

    G14740683Courtesy of TESLA, INC.

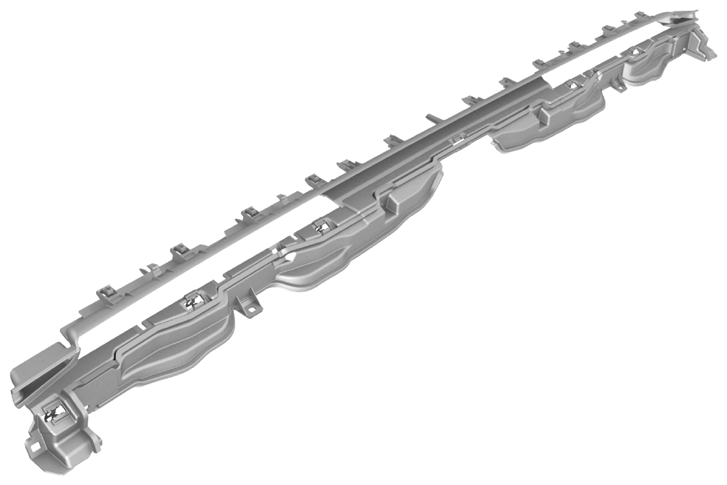

  6. Release the clips (x16) that attach the vent finisher, and then pull the finisher toward the rear of the vehicle to remove it.
    NOTE: The top pad must be lifted slightly in order to insert a trim tool, and then release the clips.
    G14740684Courtesy of TESLA, INC.
