End Cap - Instrument Panel - LH - Remove and Replace: Remove

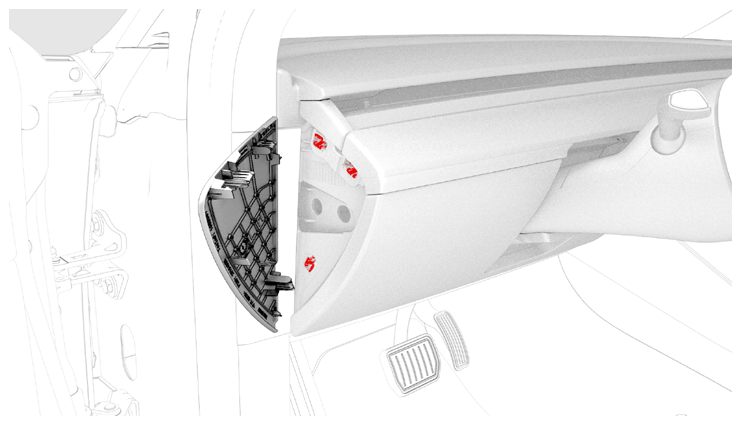

  1. Release the clips that attach the end cap.
    WARNING: Wear cut-resistant gloves when performing this step to avoid personal injury.
  2. Remove the end cap from the vehicle.
    G14740679Courtesy of TESLA, INC.

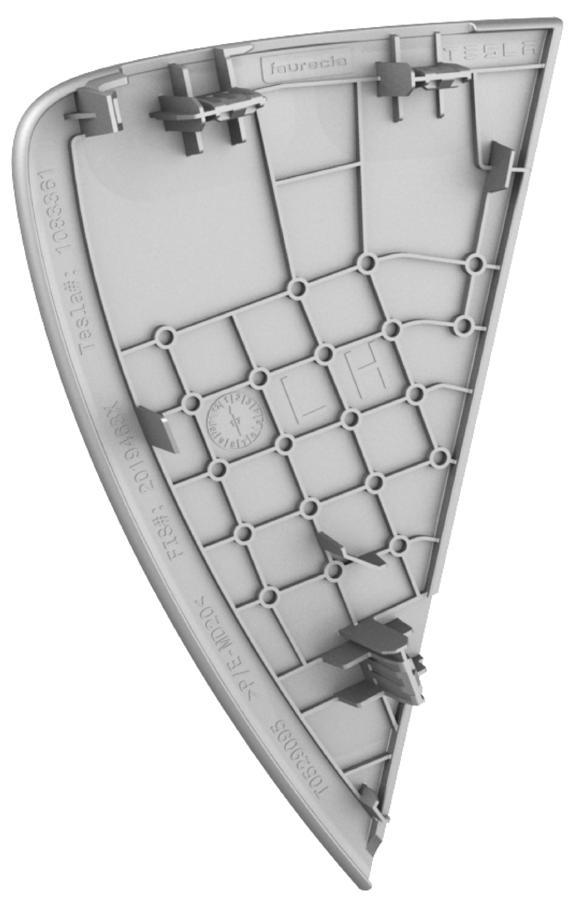

    G14740680Courtesy of TESLA, INC.
