Damper - Glove Box - Remove and Replace: Remove

  1. Remove the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .
  2. Remove the pin that attach the glove box damper to the glove box using needle nose pliers.

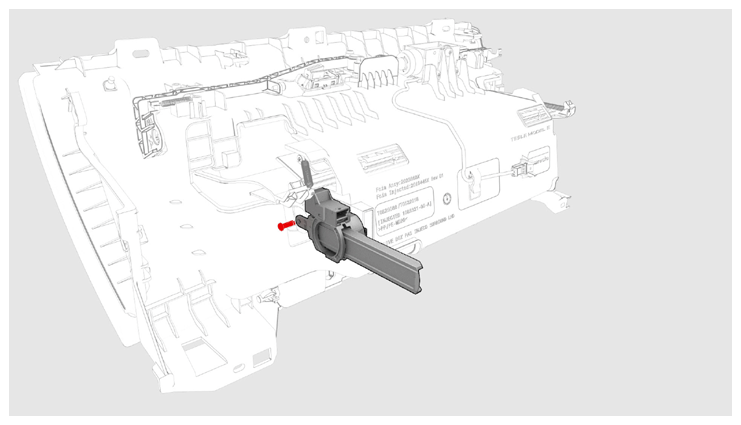

    G14740667Courtesy of TESLA, INC.
  3. Fully open the glove box.
    NOTE: When the glove box is closed, the glove box damper will not clear for removal.
  4. Turn the glove box damper 90 degrees counterclockwise, and then remove the glove box damper from the glove box.

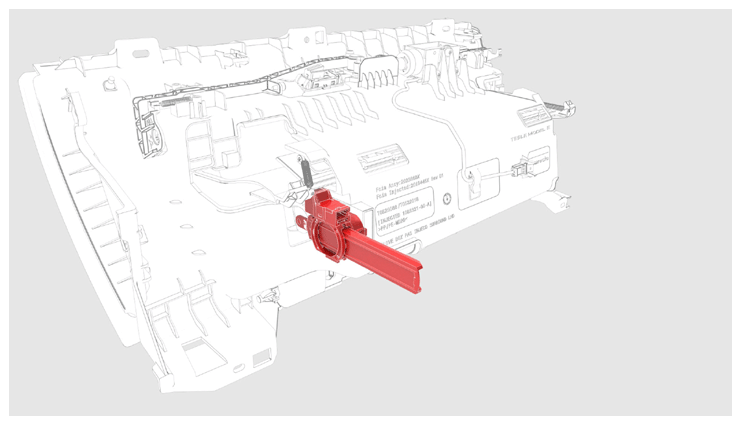

    G14740668Courtesy of TESLA, INC.

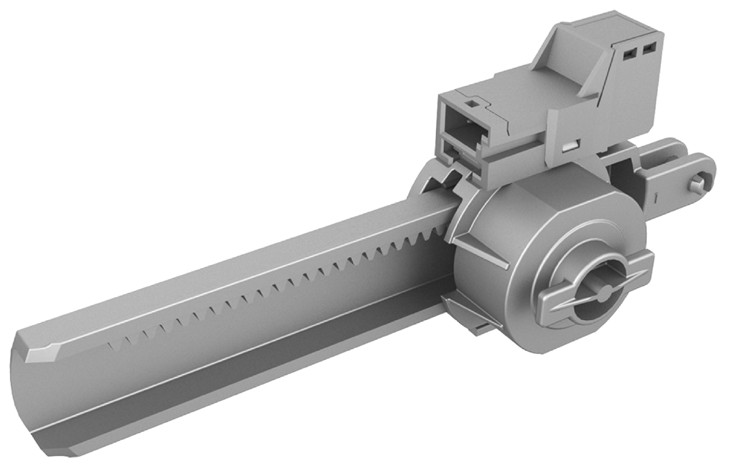

    G14740669Courtesy of TESLA, INC.
