Damper - Glove Box - Remove and Replace: Install

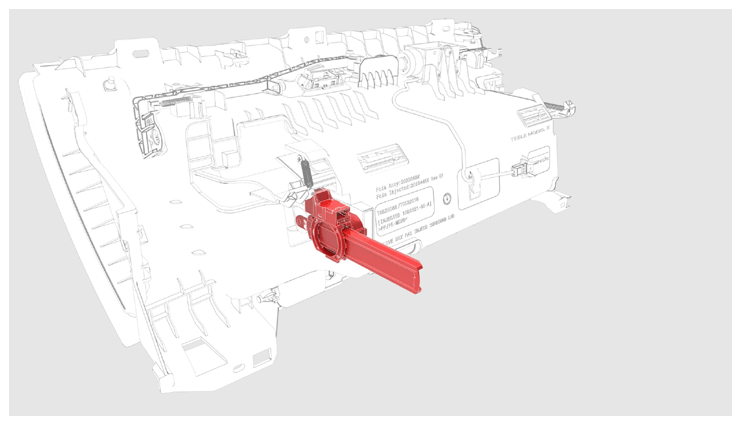

Position the glove box damper onto the glove box by turning it 90 degrees clockwise.

Courtesy of TESLA, INC.
Close the glove box so that the glove box damper engages with the glove box lid.

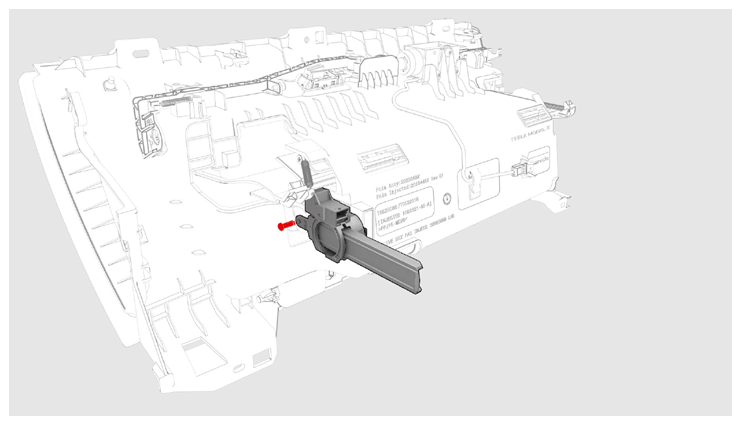

Install the pin that attaches the glove box damper to the glove box.
NOTE: Make sure that the glove box damper pin is fully seated, and not to bump the glove box damper, when installing the glove box.

Courtesy of TESLA, INC.
Install the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .
