Cover - Footwell - Driver - Remove and Replace: Remove

  1. Release the clips and remove the screw that attach the driver footwell cover to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    • 4 in extension

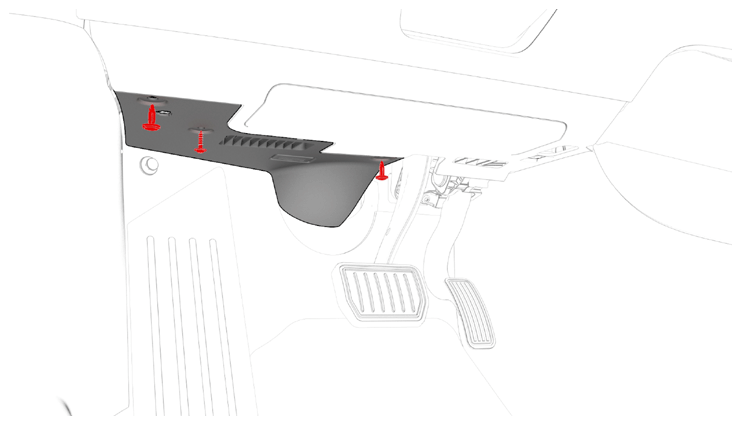

    NOTE: Left-Hand Drive (LHD).
    G14740645Courtesy of TESLA, INC.

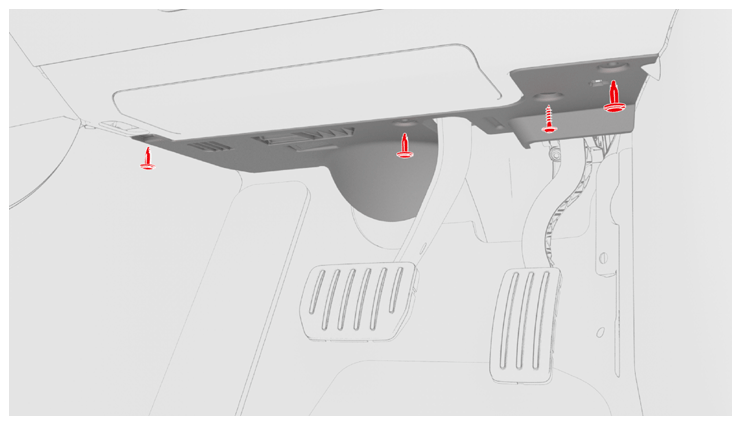

    NOTE: Right-Hand Drive (RHD).
    G14740646Courtesy of TESLA, INC.

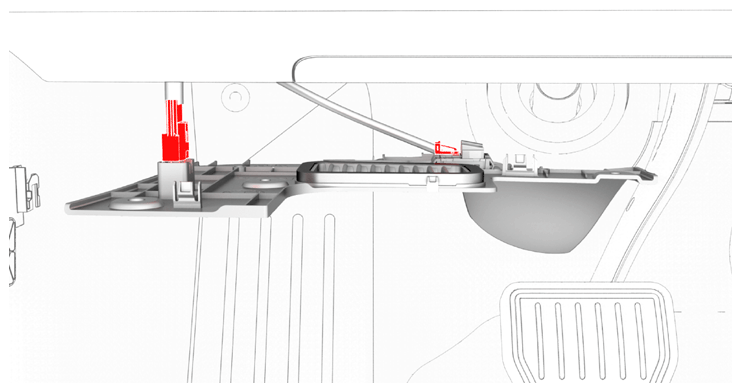

  2. Disconnect the electrical connector from the puddle light, and then disconnect the diagnostic cable from the driver footwell cover.
    NOTE: LHD Shown, RHD Similar.
    G14740647Courtesy of TESLA, INC.

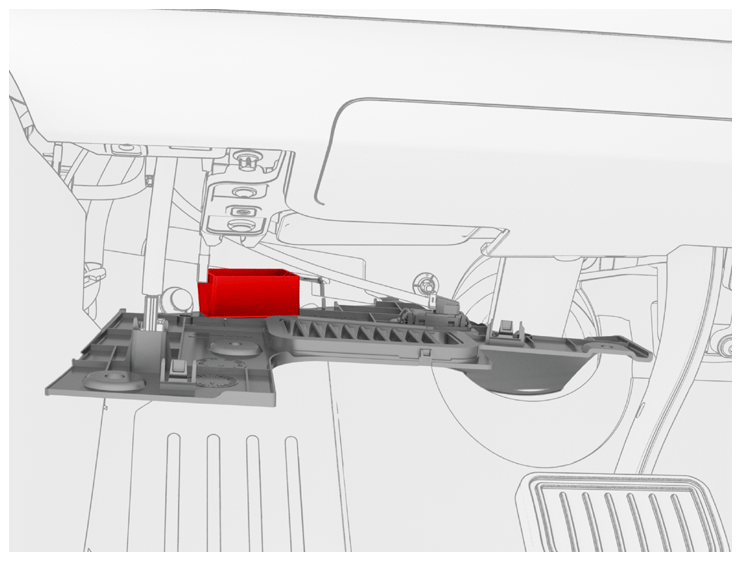

  3. APAC vehicles only:  Disconnect the OBD-II connector from the driver footwell cover.
    G14740648Courtesy of TESLA, INC.
  4. Release the tabs that attach the driver footwell cover to the vehicle, and then remove the footwell cover from the vehicle.

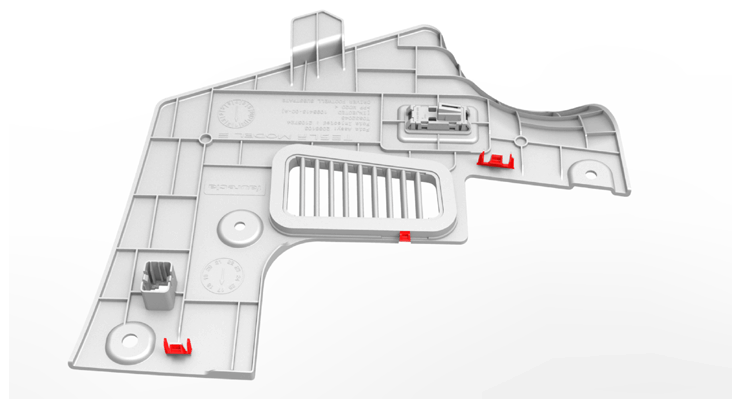

    NOTE: Left-Hand Drive (LHD).
    G14740649Courtesy of TESLA, INC.

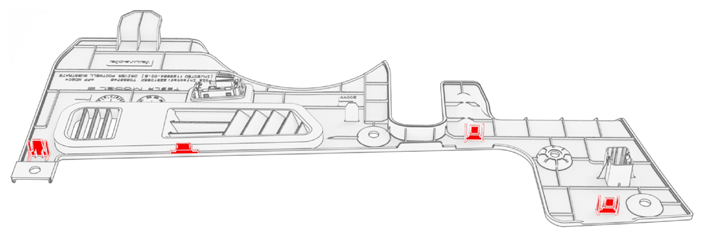

    NOTE: Right-Hand Drive (RHD).
    G14740650Courtesy of TESLA, INC.

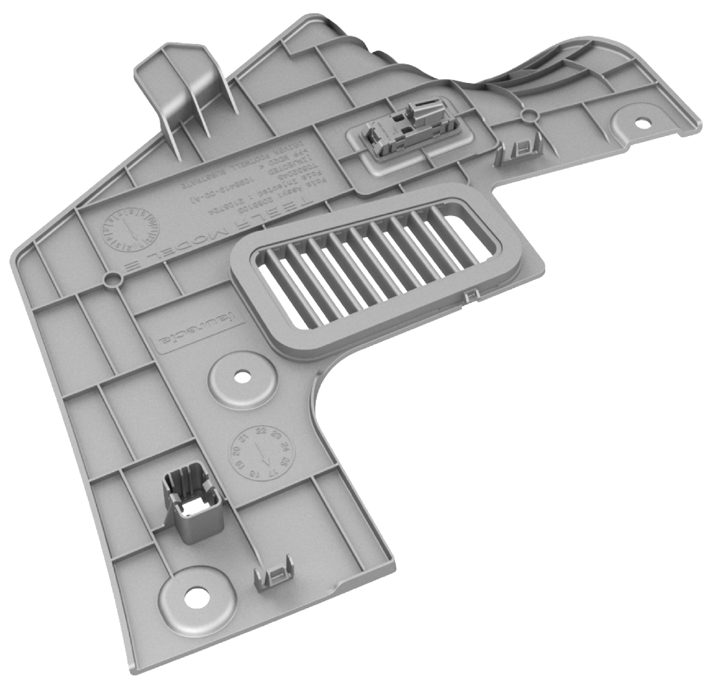

    NOTE: Left-Hand Drive (LHD).
    G14740651Courtesy of TESLA, INC.

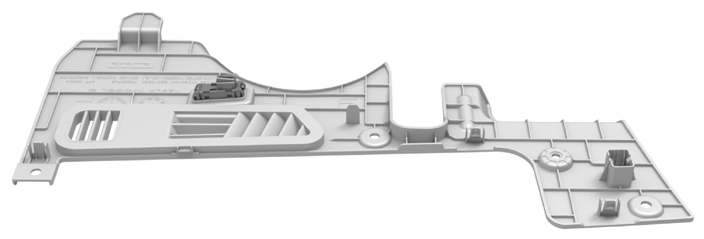

    NOTE: Right-Hand Drive (RHD).
    G14740652Courtesy of TESLA, INC.
