Wiper Arms - Remove and Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .

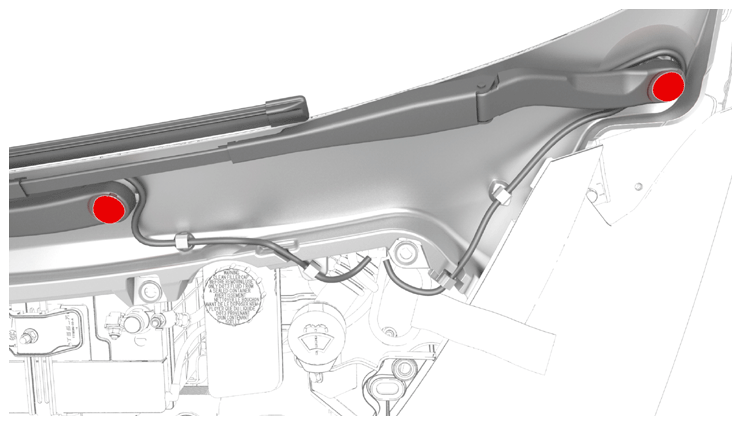

  2. Remove the wiper arm nut covers.
    G14744403Courtesy of TESLA, INC.

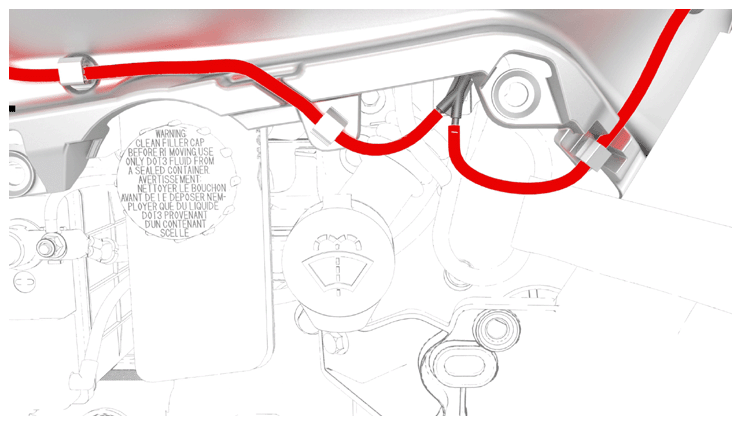

  3. Release the LH and RH wiper arm hoses from the Y-tube.
    G14744404Courtesy of TESLA, INC.
  4. Release the clips (x2 for each arm) that attach the LH and RH wiper arm hoses to the vehicle.
  5. Remove the nuts that attach the wiper arms to the wiper motor assembly.
    G14744405Courtesy of TESLA, INC.

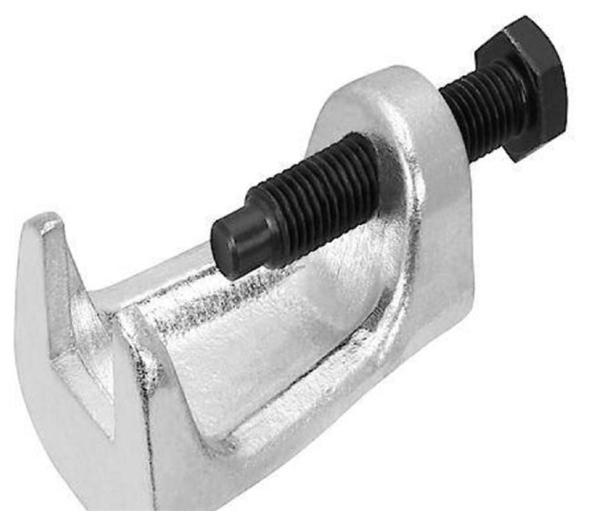

  6. Place the base of the wiper arm removal tool under the wiper arm and position the set screw so that it is centered and touching the wiper arm stud, and then tighten the set screw until the wiper arm is released.
    CAUTION: Removing the wiper arm without the wiper arm removal tool can result in damage to the wiper arm or wiper motor.
    G14744406Courtesy of TESLA, INC.

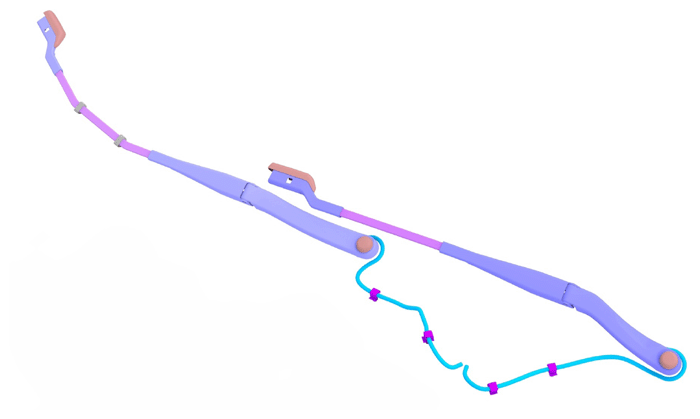

  7. Remove the wiper arms from the vehicle.
    G14744407Courtesy of TESLA, INC.
