Power Strut - Trunk - Remove and Replace: Remove

  1. Remove the trunk garnish. See GARNISH - TRUNK (REMOVE AND REPLACE) .

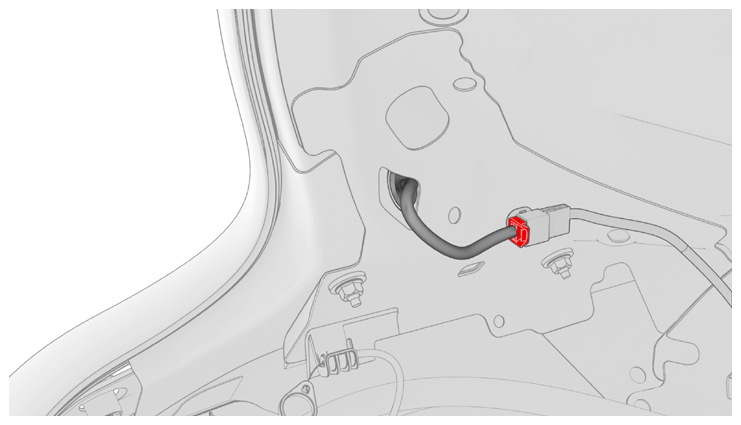

  2. Near the LH side of the vehicle interior where the trunk garnish was removed, disconnect the electrical harness from the trunk power strut electrical connector.
    G14739468Courtesy of TESLA, INC.

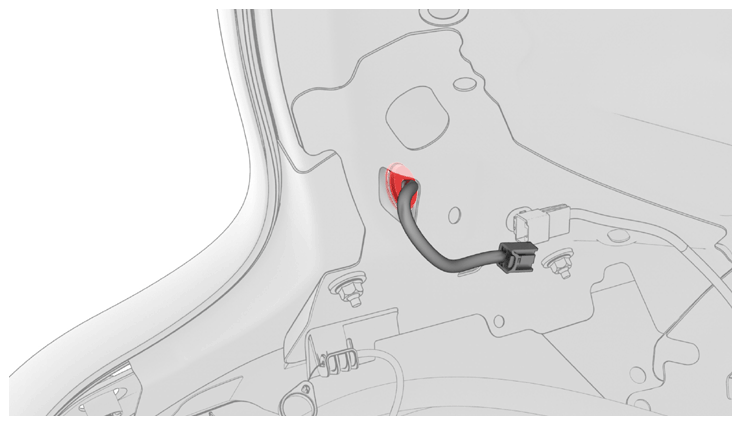

  3. Push the trunk power strut rubber grommet through the body of the vehicle.
    G14739469Courtesy of TESLA, INC.
  4. Support the trunk with a prop.

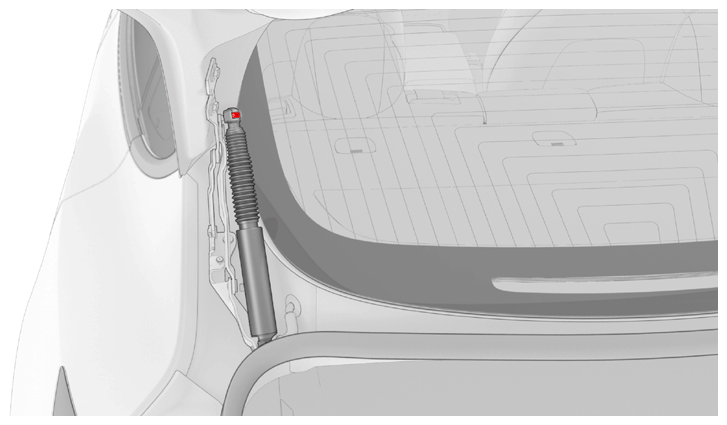

  5. Release the clip that attaches the upper end of the trunk power strut to the trunk lid, and then separate the power strut from the trunk lid ball stud.
    G14739470Courtesy of TESLA, INC.

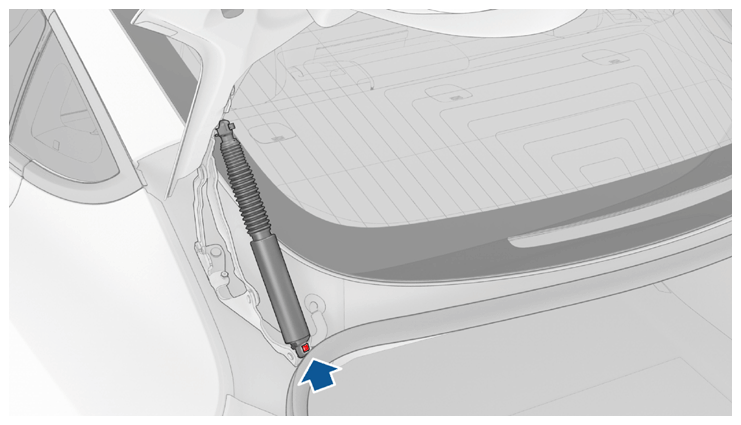

  6. Release the clip that attaches the lower end of the trunk power strut to the vehicle, and then remove the power strut from the vehicle.
    G14739471Courtesy of TESLA, INC.
