Fender Support - Front - LH - Remove and Replace: Remove

  1. Disconnect 12V power. See 12V/LV POWER - DISCONNECT AND CONNECT
  2. Remove the front fascia. See Fascia - Front - Remove and Install

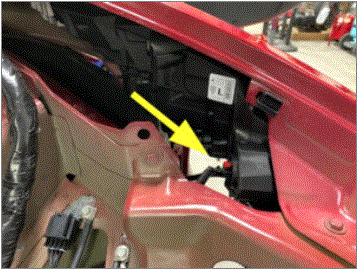

  3. Disconnect the LH headlamp connector.
    CAUTION:

    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

    G00655342Courtesy of TESLA, INC.

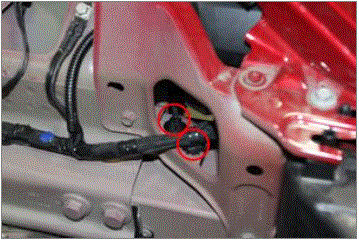

  4. Remove the front harness clips (x2) around the LH headlamp area.
    G00655343Courtesy of TESLA, INC.

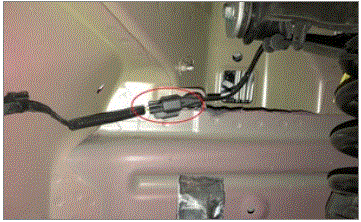

  5. Disconnect the LH front wheel speed sensor connector.
    G00655344Courtesy of TESLA, INC.

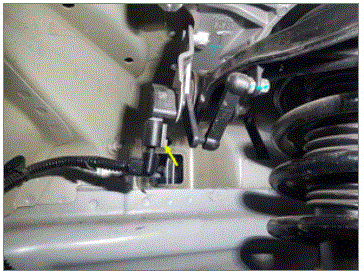

  6. Disconnect the LH front ride height sensor connector.
    G00655345Courtesy of TESLA, INC.

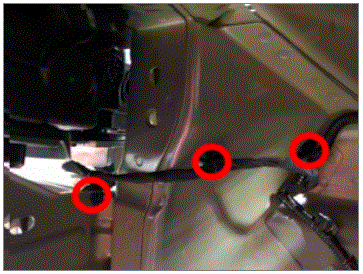

  7. Remove the front harness clips (x3) around the LH front wheel liner area.
    NOTE:

    American region vehicles have 2 clips.

    G00655346Courtesy of TESLA, INC.

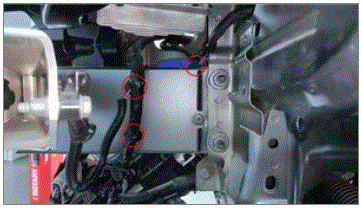

  8. Remove the clips (x3) that attach the front harness to the LH crush can.
    G00655347Courtesy of TESLA, INC.

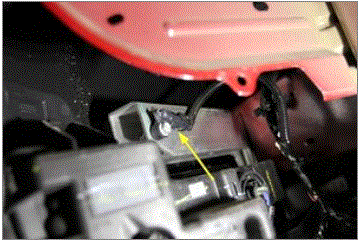

  9. Disconnect the front harness from the LH acceleration sensor.
    G00655348Courtesy of TESLA, INC.

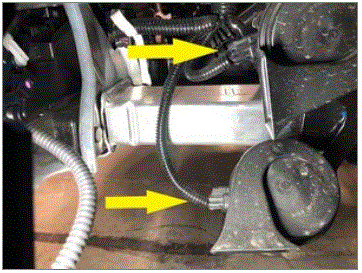

  10. Disconnect the connectors (x2) from the horn assembly.
    NOTE:

    The horn is located on the LH front area of the vehicle.

    G00655349Courtesy of TESLA, INC.

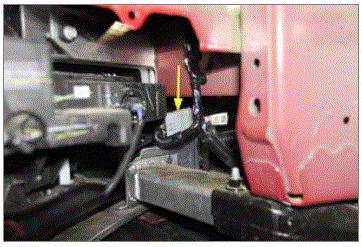

  11. Disconnect the front harness connector for the LH front carrier harness.
    G00655350Courtesy of TESLA, INC.

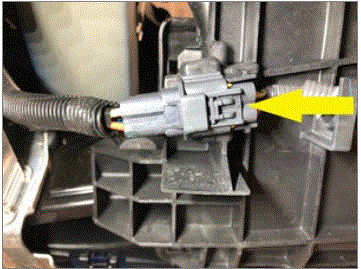

  12. Disconnect the cooling fan module connector.
    CAUTION:

    Disconnect the connector after the coolant hose is capped to avoid the coolant damaging the connector.

    G00655351Courtesy of TESLA, INC.

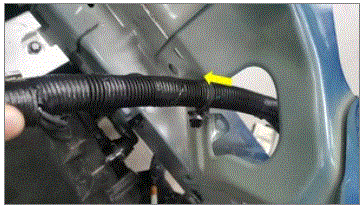

  13. Remove the harness from the LH front fender support.
    G00655352Courtesy of TESLA, INC.

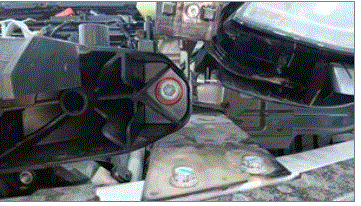

  14. Remove the bolt that attaches the LH front fender support to the front end carrier.

      Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    • 3 in extension
    • Ratchet/torque wrench
    G00655353Courtesy of TESLA, INC.

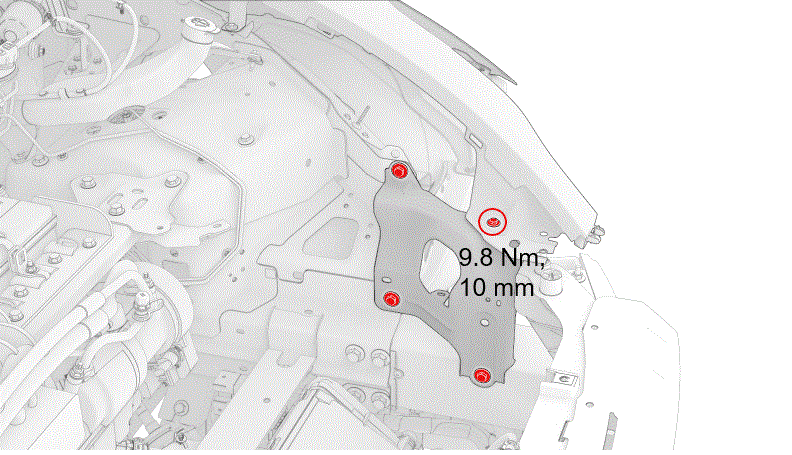

  15. Remove the bolt that attaches the LH front fender support to the front fender assembly.

      Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Ratchet/torque wrench
    G00655354Courtesy of TESLA, INC.

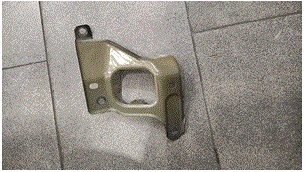

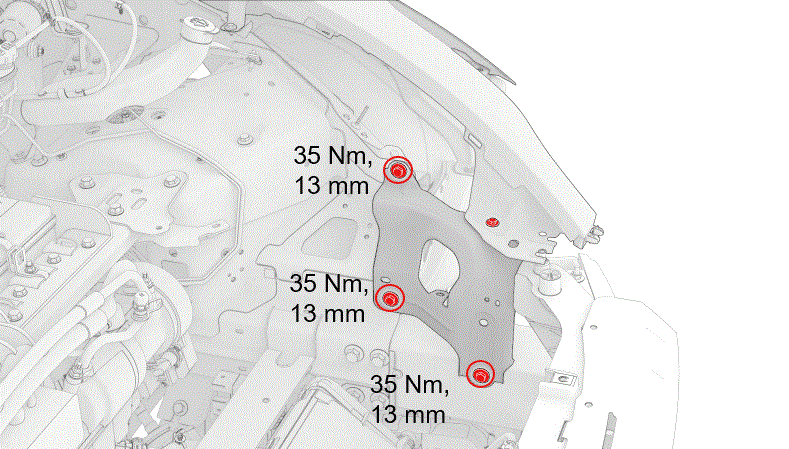

  16. Remove the bolts (x3) that attach the LH front fender support to the vehicle, and then remove the LH front fender support from the vehicle.

      Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Ratchet/torque wrench
    G00655355Courtesy of TESLA, INC.
    G00655356Courtesy of TESLA, INC.
