Door - Front - LH - Remove and Install: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  4. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  5. Remove the middle A-Pillar trim panel. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  6. Remove the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

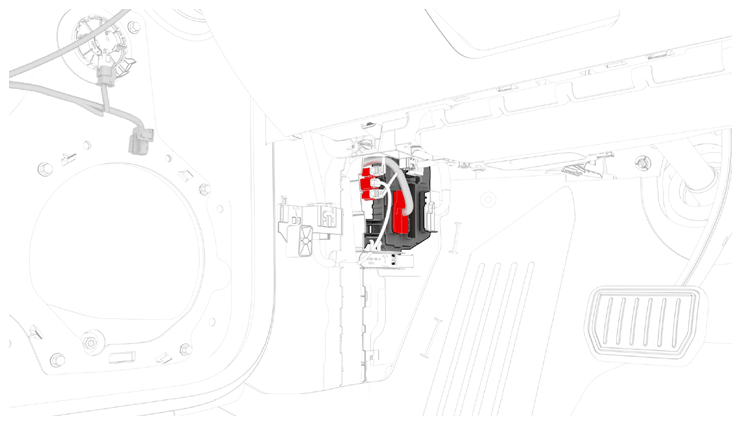

  7. Disconnect the LH front door electrical connectors from the LH body controller module.
    G14738926Courtesy of TESLA, INC.

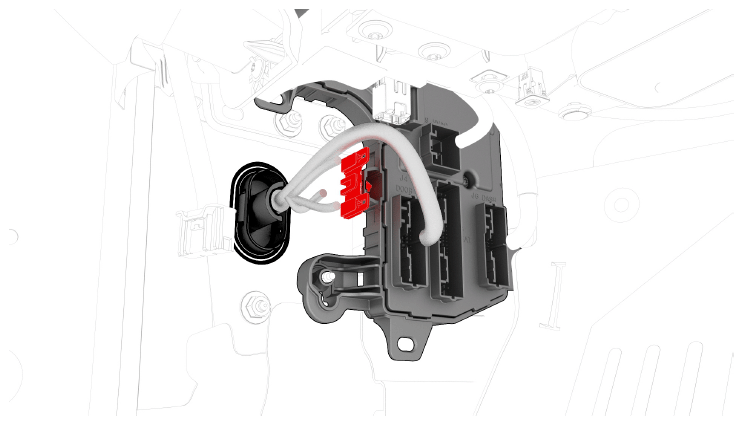

  8. Release the electrical harness clip from the LH body controller module.
    G14738927Courtesy of TESLA, INC.

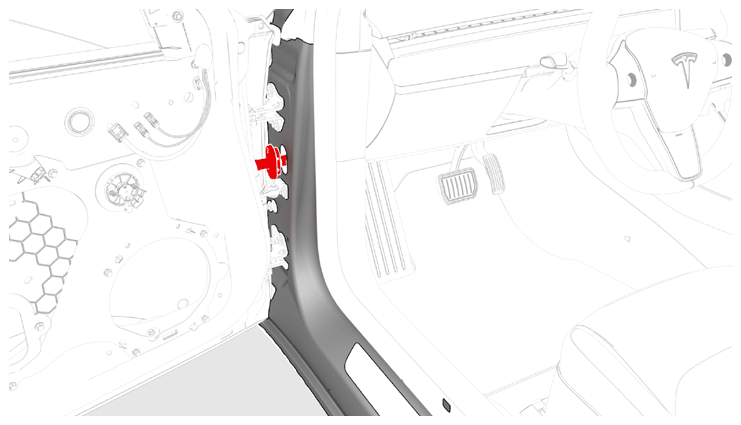

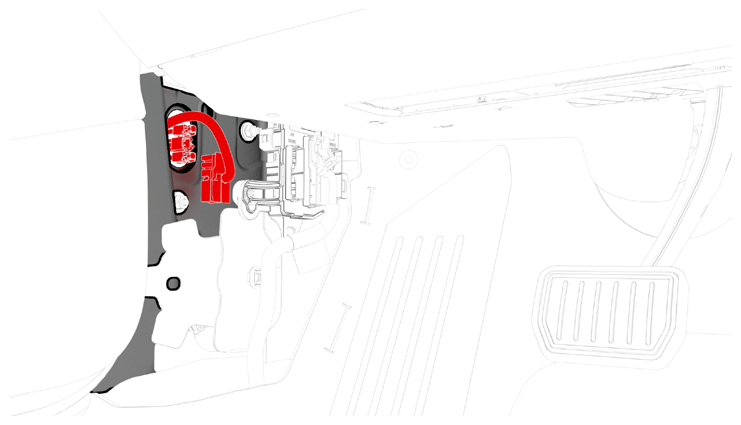

  9. Release the grommet, and then push the LH door electrical harness through the A-pillar bulkhead.
    G14738928Courtesy of TESLA, INC.
    G14738929Courtesy of TESLA, INC.

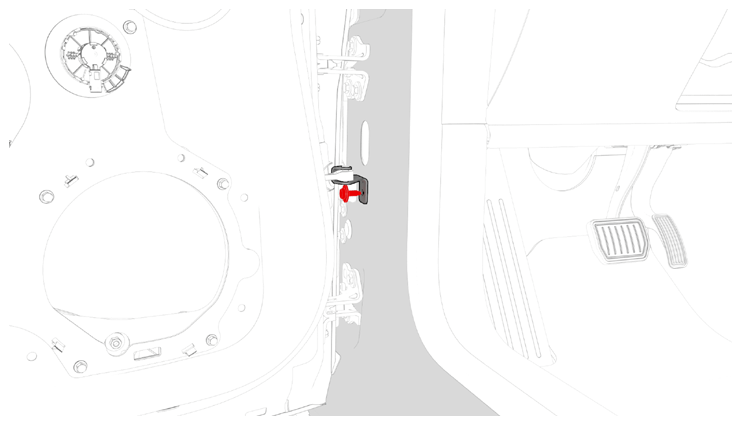

  10. Remove the bolt that attaches the LH front door check strap to the A-pillar.

    24 N.m (17.7 ft-lbs)

    G14738930Courtesy of TESLA, INC.
    CAUTION: Unbolting the door check allows the door to swing freely beyond opening limits.

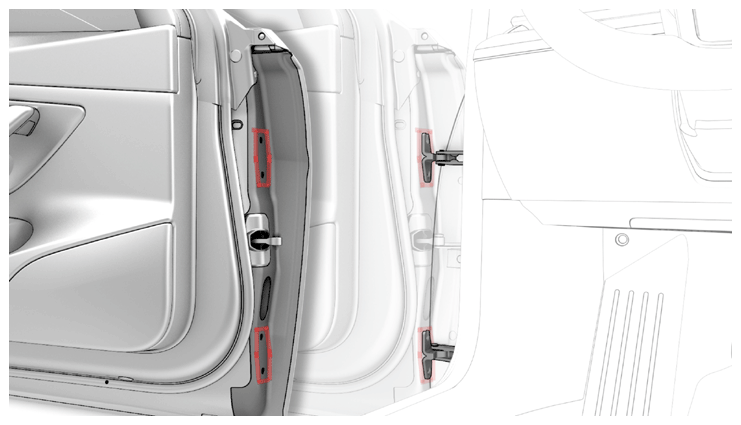

  11. Use tape to mark the mounting locations of the door hinges on the LH front door.
    G14738931Courtesy of TESLA, INC.

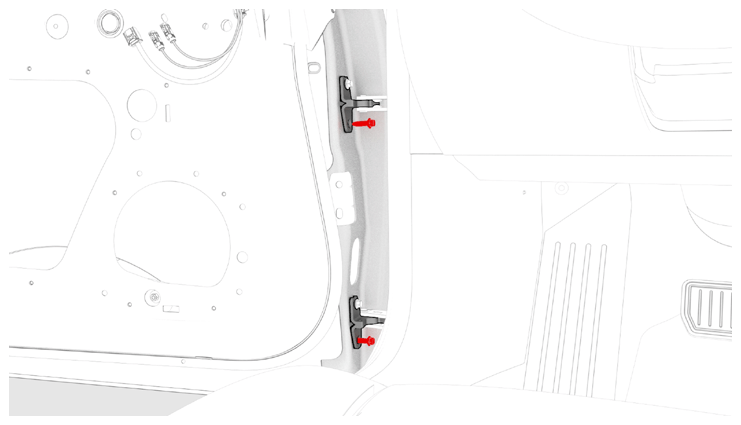

  12. Loosen the hinge bolts, and then remove the lower bolts for each hinge.

    24 N.m (17.7 ft-lbs)

    G14738932Courtesy of TESLA, INC.

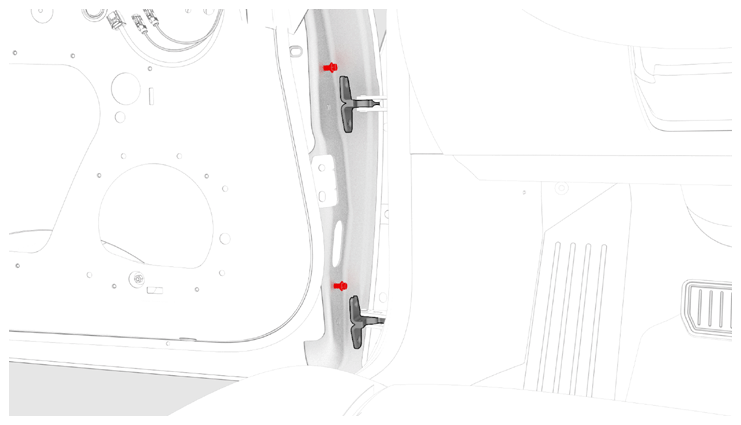

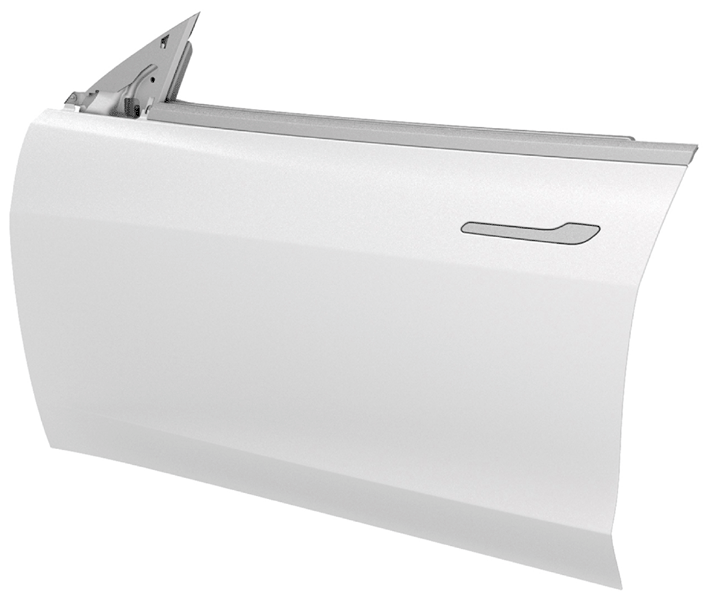

  13. Partially unthread the upper bolt for each hinge, and with assistance, lift the LH front door away from the vehicle.
    G14738933Courtesy of TESLA, INC.
    G14738934Courtesy of TESLA, INC.
