Carrier - Front End - Remove and Replace: Remove

  1. Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  4. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  5. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  6. Remove the front fascia assembly. See FASCIA - FRONT (REMOVE AND INSTALL) .
  7. Remove the front bumper. See BUMPER BEAM - FRONT (REMOVE AND REPLACE) .

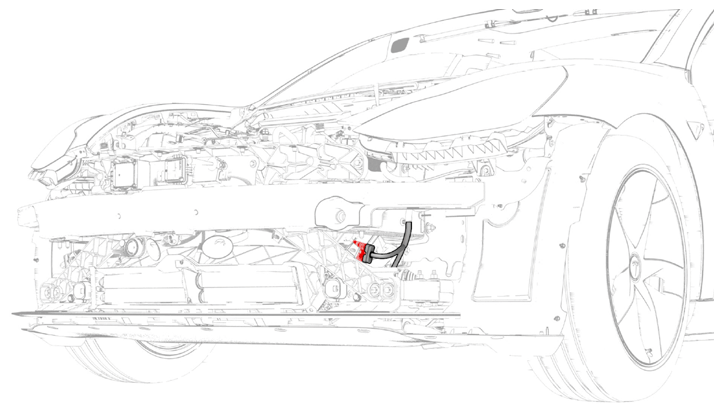

  8. Disconnect the electrical harness from the LH front end carrier electrical connector.
    G14738912Courtesy of TESLA, INC.

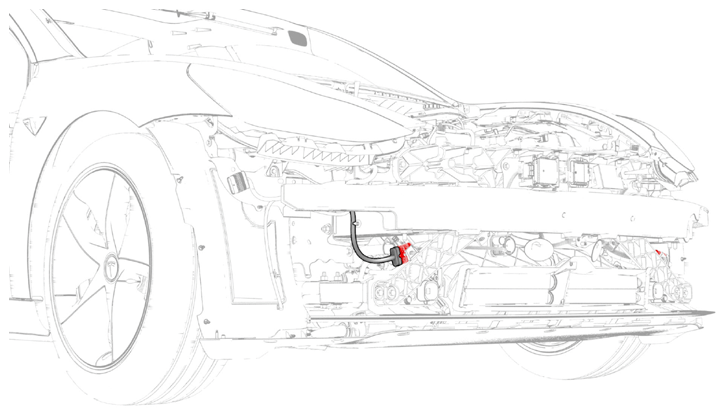

  9. Disconnect the electrical harness from the RH front end carrier electrical connector.
    G14738913Courtesy of TESLA, INC.

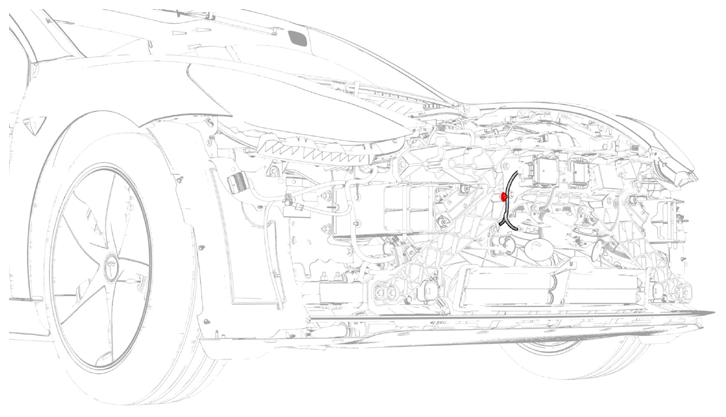

  10. Release the clip that attaches the front radar sensor electrical harness to the front end carrier.
    G14738914Courtesy of TESLA, INC.
  11. Remove the front radar sensor. See SENSOR - RADAR - FRONT (REMOVE AND REPLACE) .
  12. Remove the HomeLink transmitter module. See MODULE - HOMELINK TRANSMITTER (REMOVE AND REPLACE) .
  13. Remove the front Bluetooth passive entry antenna. See ANTENNA - BLUETOOTH PASSIVE ENTRY - FRONT (REMOVE AND REPLACE) .

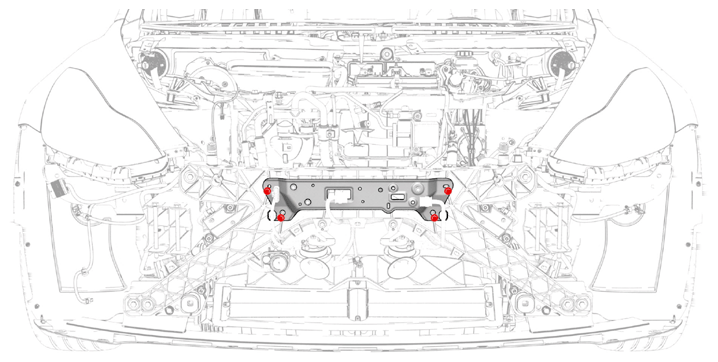

  14. Remove the bolts that attach the radar bracket to the front end carrier, and remove the bracket from the vehicle.
    G14738915Courtesy of TESLA, INC.
  15. Remove the high tone horn. See HORN - HIGH TONE (REMOVE ND REPLACE) .
  16. Remove the low tone horn. See HORN - LOW TONE (REMOVE AND REPLACE) .
  17. Disconnect the electrical connector from the AGS actuator.
  18. Remove the ankle catcher. See ANKLE CATCHER (REMOVE AND REPLACE) .
  19. Remove the front end carrier from the vehicle and place it on a padded surface.
  20. Remove the primary hood latch actuator. See ACTUATOR - LATCH - HOOD - PRIMARY (REMOVE AND REPLACE) .
  21. Remove the secondary hood latch actuator. See ACTUATOR - LATCH - HOOD - SECONDARY (REMOVE AND REPLACE) .
  22. Remove the hood latch. See LATCH - HOOD (REMOVE AND REPLACE) .

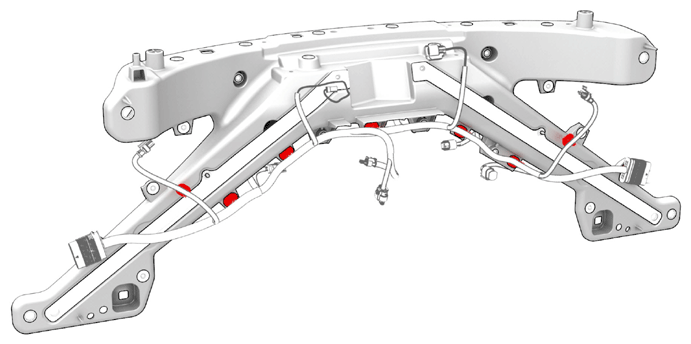

  23. Release the clips that attach the electrical harness to the front end carrier, and then remove the electrical harness from the front end carrier.
    G14738916Courtesy of TESLA, INC.

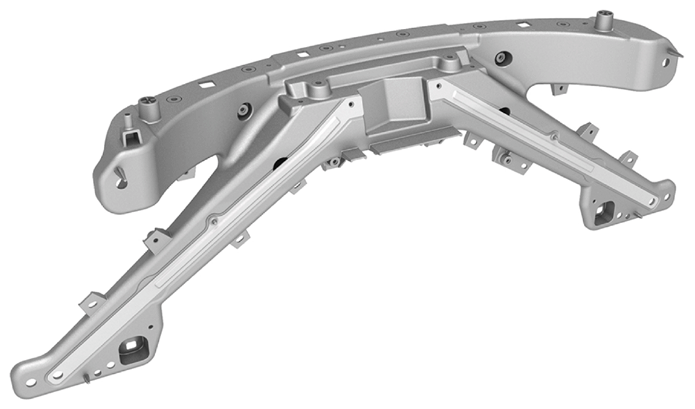

    G14738917Courtesy of TESLA, INC.
