Antenna - GPS - Remove and Replace: Remove

  1. Remove the forward facing camera. See CAMERA - TRIPLE - FORWARD FACING (REMOVE AND REPLACE) .
  2. Disconnect the electrical harness from the humidity and temperature sensor connector.
    G14748526Courtesy of TESLA, INC.

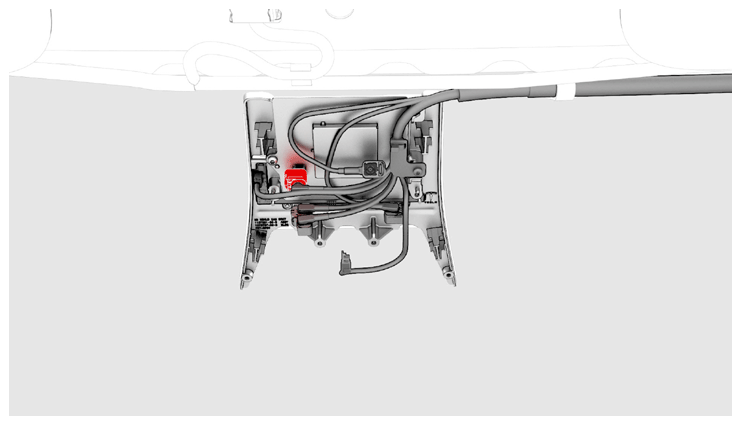

  3. Disconnect the electrical harness from the GPS antenna connector.
    G14748527Courtesy of TESLA, INC.

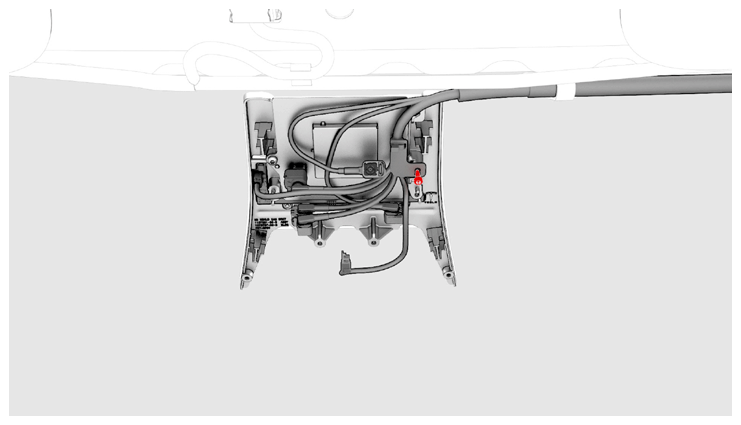

  4. Remove the screw that attaches the electrical harness to the windshield bracket, and then move the electrical harness aside.

    1 N.m (.7 ft-lbs)

    G14748528Courtesy of TESLA, INC.

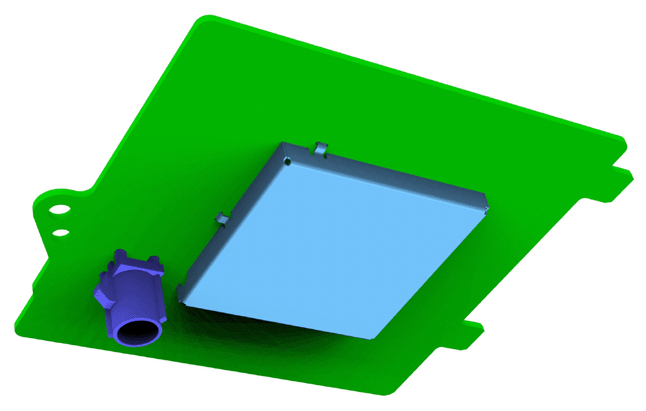

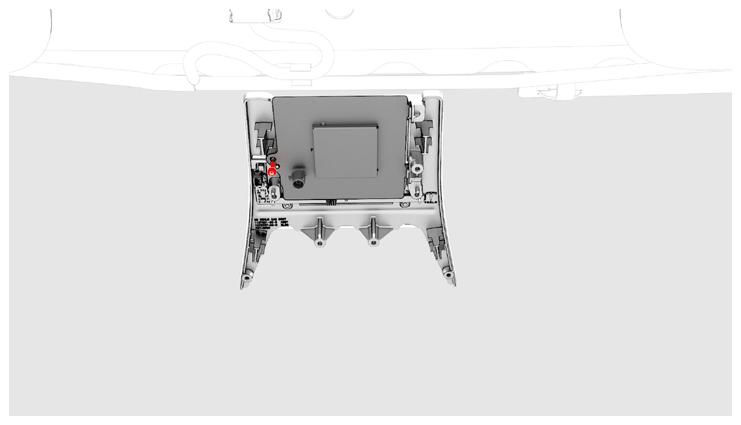

  5. Remove the screw that attaches the GPS antenna to the bracket, and then remove the GPS antenna from the vehicle.

    1 N.m (.7 ft-lbs)

    G14748529Courtesy of TESLA, INC.
    G14748530Courtesy of TESLA, INC.
