Horn Assembly - Remove and Replace: Install

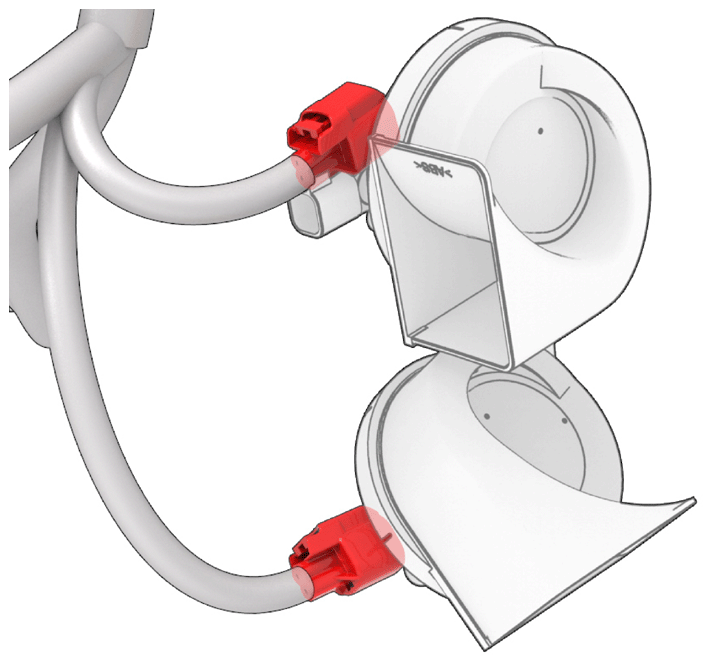

  1. Position the horn assembly for installation, and then connect the electrical connectors (x2) to the horn assembly.
    G14744473Courtesy of TESLA, INC.

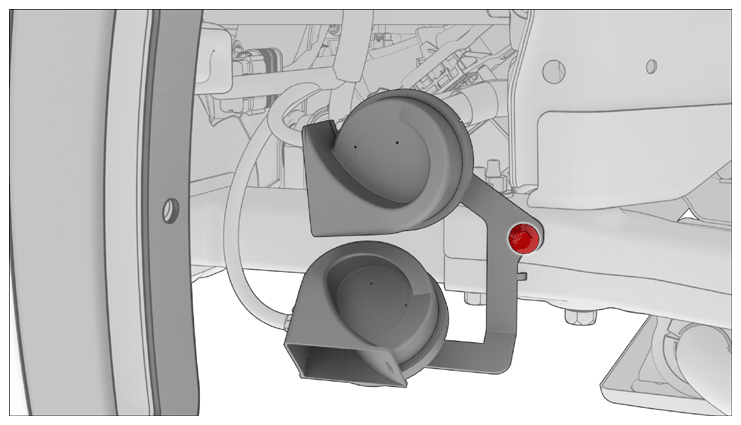

  2. Install the bolt that attaches the horn assembly to the front subframe.

    12 N.m (8.8 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 6 in extension
    G14744474Courtesy of TESLA, INC.

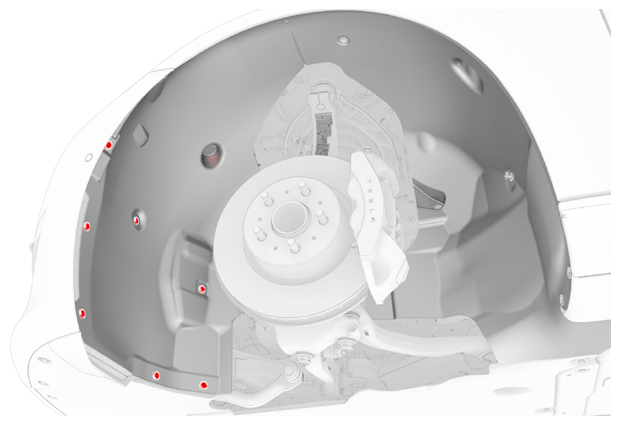

  3. Install the clips (x7) that attach the front portion of the LH front wheel arch liner to the vehicle.
    G14744475Courtesy of TESLA, INC.
  4. Center the steering wheel.
