Antenna - Bluetooth Passive Entry - Rear - Remove and Replace: Remove

  1. Remove the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .
  2. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  3. Disconnect the electrical wiring harness connector from the rear Bluetooth passive entry module.
    G14744348Courtesy of TESLA, INC.

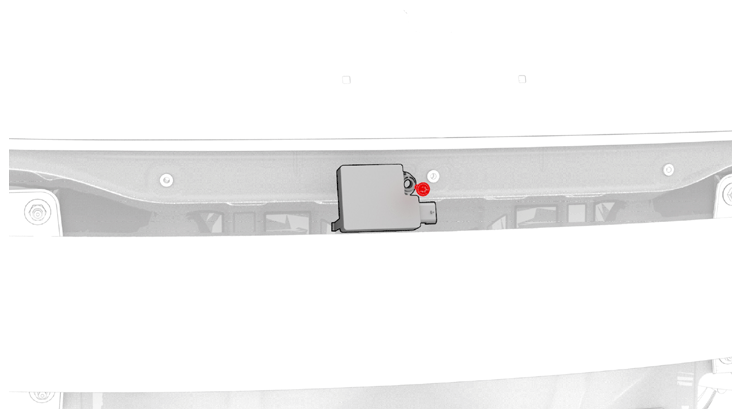

  4. Remove and discard the bolt and release the clip that attach the Bluetooth passive entry module to the body, and then remove the module from the bracket.
    NOTE: When releasing the module from the bracket, rotate the left side away from the bracket to release the tab.
    NOTE: Use of the following tool(s) is recommended:
    • T30 socket
    • 2 in extension
    G14744349Courtesy of TESLA, INC.
