Puddle Light - Rear Door - LH - Remove and Replace: Remove

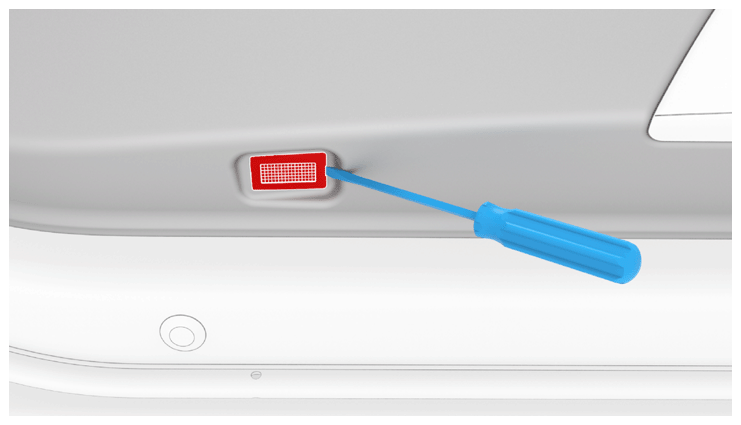

  1. Use a small screwdriver or pry tool in the slot at the front of the puddle light to pry the light out of the bottom of the LH rear door trim panel.
    G14744196Courtesy of TESLA, INC.

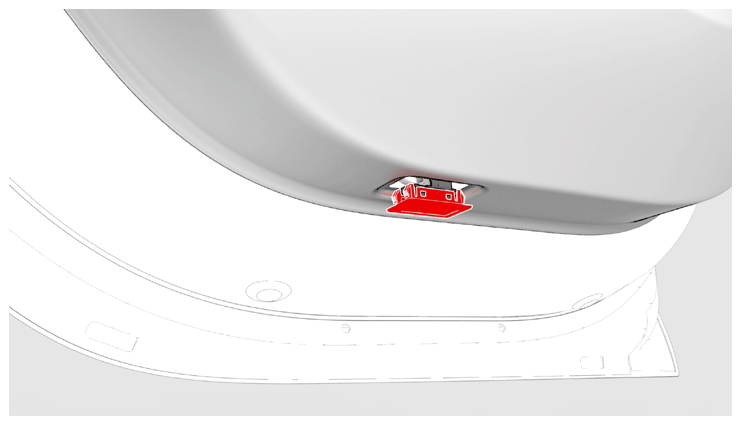

  2. Release the clips that attach the front of the puddle light to the bottom of the door trim panel, and then separate the light from the panel.
    CAUTION: The light electrical harness is very short. Do not pull on the harness.
    G14744197Courtesy of TESLA, INC.

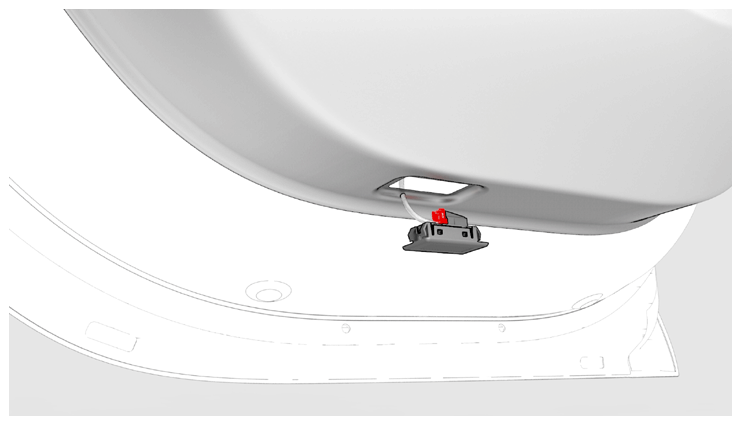

  3. Disconnect the electrical harness from the puddle light connector, and then remove the light from the vehicle.
    G14744198Courtesy of TESLA, INC.
