Speaker - Front Door - LH - Remove and Replace: Remove

  1. Remove the LH front door trim panel. See PANEL - DOOR TRIM - FRONT - LH (REMOVE AND REPLACE) .

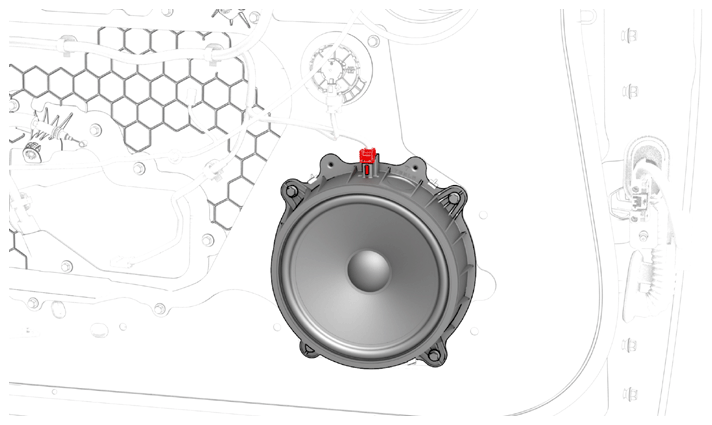

  2. Disconnect the electrical connector from the front door speaker.
    G14748468Courtesy of TESLA, INC.

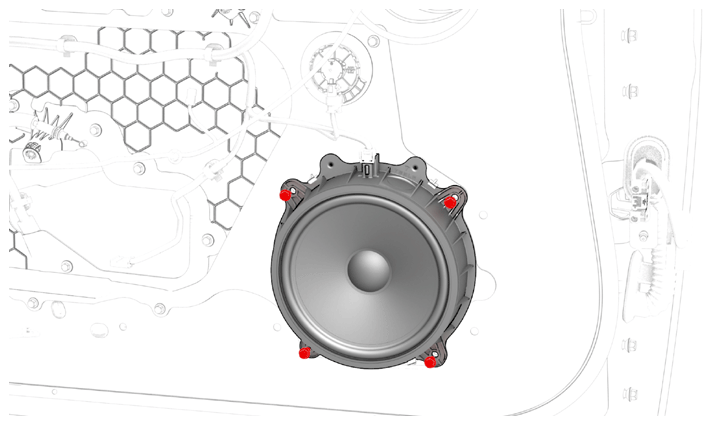

  3. Remove the screws that attach the front door speaker to the door, and then remove the speaker.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    • 2 in extension
    G14748469Courtesy of TESLA, INC.

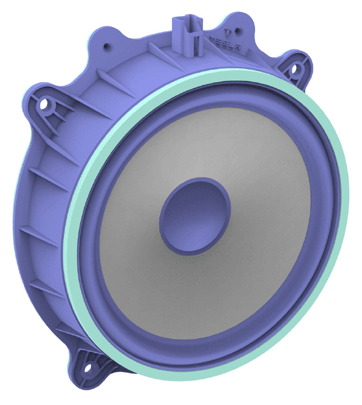

    G14748470Courtesy of TESLA, INC.
