Light - License Plate - Remove and Replace: Remove

  1. Remove the trunk lid trim. See TRIM - LID - TRUNK (REMOVE AND REPLACE) .
  2. Disconnect the electrical connector from the license plate light.

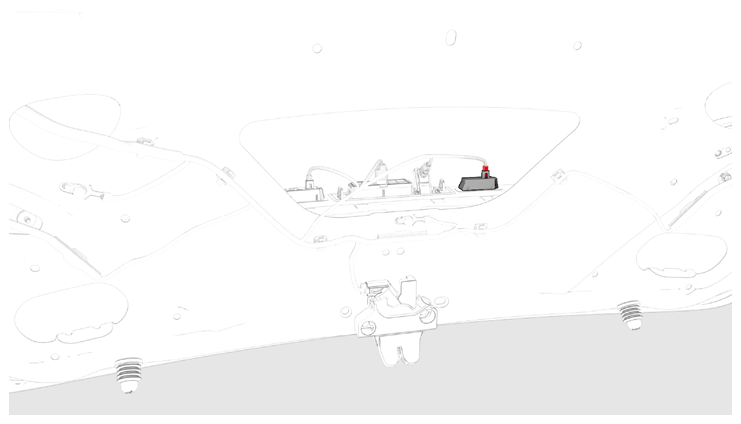

    G14744293Courtesy of TESLA, INC.
  3. Push the license plate light towards the RH of the vehicle to compress the clip, and then compress the clip on the other side of the light to remove the light.

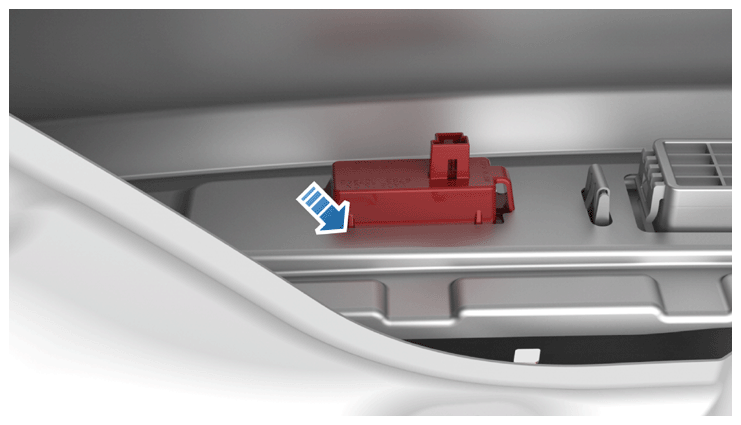

    G14744294Courtesy of TESLA, INC.

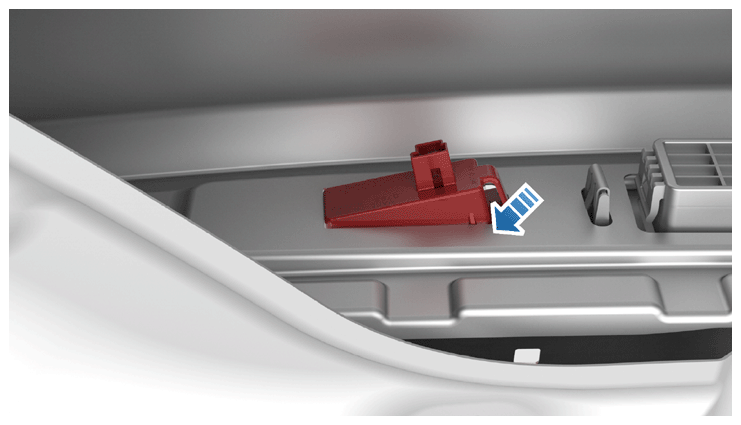

    G14744295Courtesy of TESLA, INC.

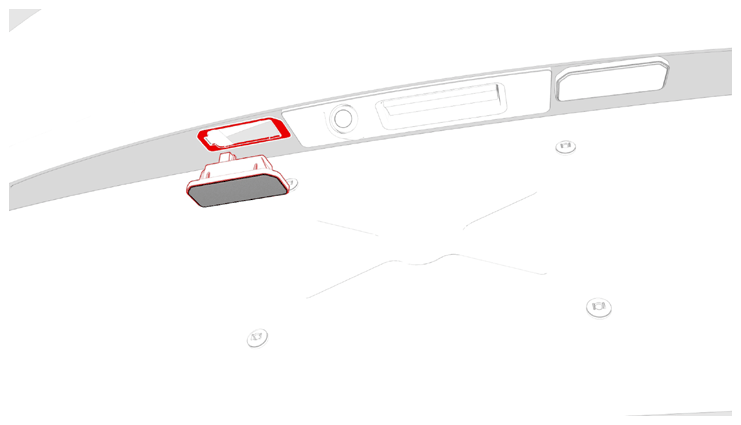

    G14744296Courtesy of TESLA, INC.

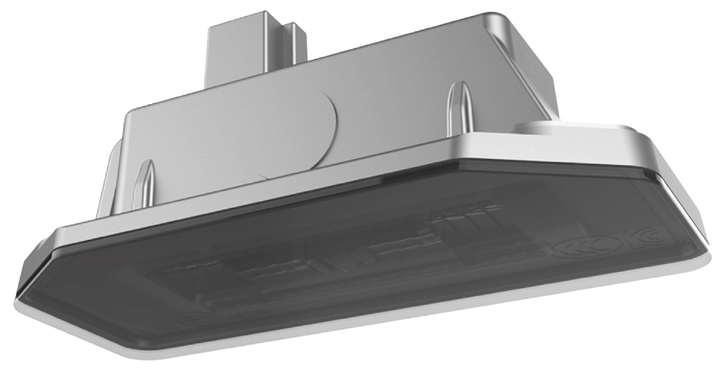

    G14744297Courtesy of TESLA, INC.
