Seal - Liftgate - Remove And Replace: Install

  1. Position the liftgate seal into the vehicle, align the seal seam at the top center of the liftgate, remove the adhesive backing from the seal, and then install the seal into the vehicle.
    NOTE: Make sure the seal is not rolled and the all edges are covered by the seal.

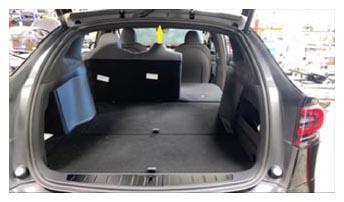

    G15392675Courtesy of TESLA, INC.

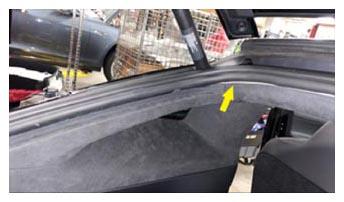

    G15392676Courtesy of TESLA, INC.

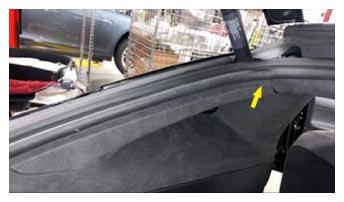

    G15392677Courtesy of TESLA, INC.
  2. Use IPA wipes to clean the liftgate seal and surrounding trim panel of any excess adhesive.
    NOTE: Allow 1 min of dry time.
  3. Close the liftgate.
