Gas Strut - Hood - LH - Remove And Replace: Install

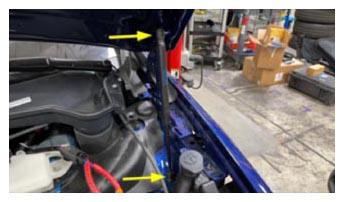

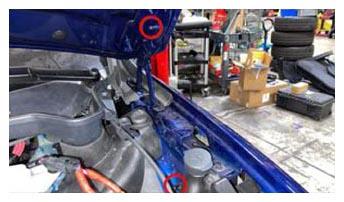

  1. Position the LH hood gas strut into the vehicle, press each end of the strut firmly into the ball socket, and then secure the clips (x2).
    G15391095Courtesy of TESLA, INC.
    G15391096Courtesy of TESLA, INC.
  2. Install the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  3. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
