Light - Fog - Front - LH - Remove And Replace: Remove

  1. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install) .

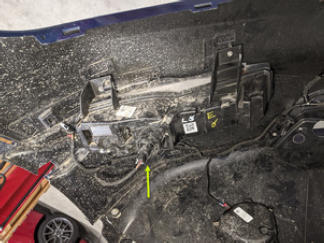

  2. Disconnect the LH front fog light electrical connector.
    G15438136Courtesy of TESLA, INC.

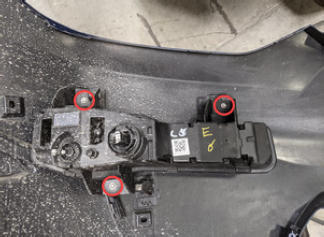

  3. Remove the screws (x3) that attach the LH front fog light to the front fascia assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15438137Courtesy of TESLA, INC.

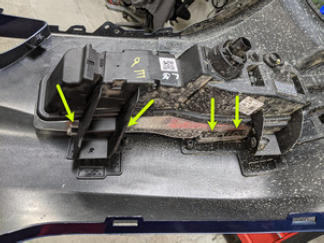

  4. Release the tabs (x4) that attach the LH front fog light to the front fascia assembly, and then remove the fog light from the assembly.
    G15438138Courtesy of TESLA, INC.
