Speaker - Front Door - LH - Remove And Replace: Remove

  1. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
  2. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .
  3. Disconnect the LH front door speaker electrical connector.
    G15409047Courtesy of TESLA, INC.

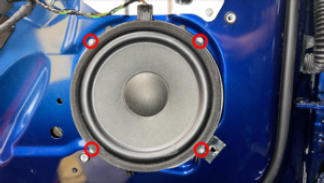

  4. Remove the bolts (x4) that attach the LH front door speaker to the LH front door, and then remove the speaker from the door.

    3.5 N.m (2.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 1/4 socket
    G15409048Courtesy of TESLA, INC.
