Pump - Windshield Washer Reservoir - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  4. Remove the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  5. Remove the LH front wheel. See Wheel (Remove and Install) .
  6. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .

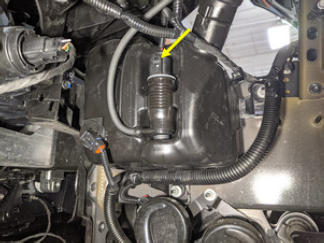

  7. Disconnect the windshield washer reservoir pump electrical connector.
    G15438347Courtesy of TESLA, INC.

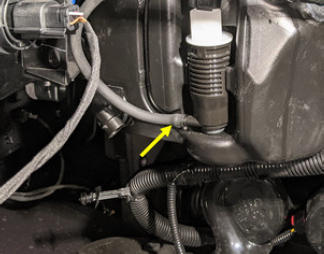

  8. Disconnect the reservoir washer hose from the windshield washer reservoir pump.
    G15438348Courtesy of TESLA, INC.

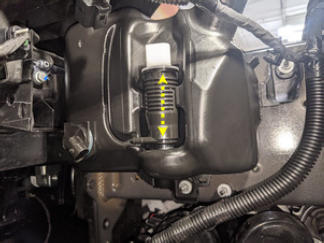

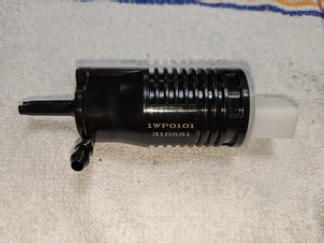

  9. Pull the windshield washer reservoir pump upward to release it from the windshield washer reservoir, and then remove the pump from the vehicle.
    G15438349Courtesy of TESLA, INC.
    G15438350Courtesy of TESLA, INC.
