Cover - Side - Tail Light - Liftgate - LH - Remove And Replace: Install

  1. Position the LH liftgate tail light side cover to the liftgate, and then secure the clips (x2) that attach the cover to the liftgate.
    G15437994Courtesy of TESLA, INC.

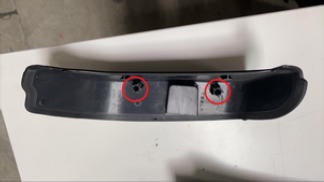

    G15437995Courtesy of TESLA, INC.
  2. Close the liftgate.
  3. Raise the LH front window and close the LH front door.
